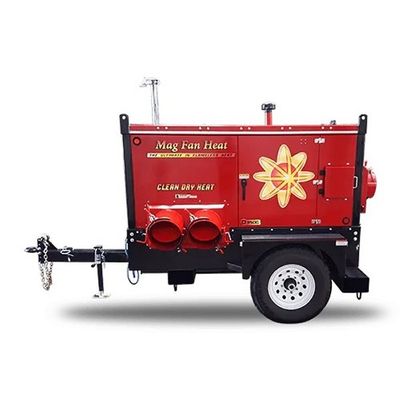

Mag Fan - Model D3500 -Flameless Air Heater
The Mag Fan D3500 uses magnetic heat to generate high volumes of humidity-free, low emissions heat for almost any large area. This economical heating solution quickly produces a tremendous amount of fast dry heat, without the use of spark, friction or flame. A safer alternative to an incineration device attached to a boiler, this flameless heater’s efficiency rating is over 90 percent in many environments and weather conditions. This high efficiency lowers the cost per BTU, resulting in an overall reduced cost of operation. So even in the roughest, toughest weather conditions this user-friendly series is ready to deliver the heat.
Most popular related searches
Performance
- Fuel : Type : Diesel
- Fan Output : CFM : 5000
- Fuel Consumption : GPH : 3.3 Max
- Efficiency : % : 95%+
- Temperature Rise : °F : 150°F+
- Electrical Requirement : External : 12 volt
Components
- Engine : OEM / Liter : Doosan 2.4 Tier 4 Final
- Exhaust Heat Exchanger : type : Air-to-air
- Alternator : type : Standard
Technical Data
- Dimensions (L x W x H) : in. : 12` x 6`7" x 7`
- Discharge Height (center) : in. : 3`
- Shipping Length : in. : 8` x 6`7" x 7`
- Dry Weight : lbs. : ~ 4,300 lbs.
- Fuel Capacity (min. run time)(1) : gal / hrs : 98 US gal.
Control System
- Electronic : : Standard
- Remote Thermostat : : Optional
- System Protection : : Standard
- Overheat : : Standard
- Low Fuel : : Standard
- Over Speed Shutdown Valve : : Standard
- Telematics : : Optional
Trailer / Enclosure
- Hitch : type : Pintle or Ball
- Lifting Crane Eyes : qty. : 4
- Forklift Pockets : : Skid
- Monitoring Beacon : : Standard
- Emergency Stop Button : : Standard
- Liquid Containment (Secondary) : : Standard
- Axle (Torsion) : qty. : Single
- Electric Brakes : : Standard
- Discharge Ports : qty. / dia. (in.) : Dual, 12"
- Recirculation Ports : : Optional
