Mag Fan - Model D6000 - Flameless Air ...

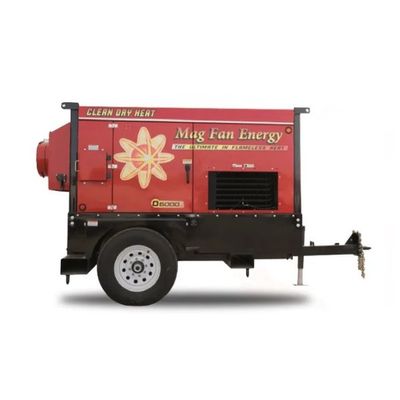

Mag Fan - Model D6000 -Flameless Air Heater

FromMag Fan Heat, By Precision Equipment MFG

SHARE

The Mag Fan D6000 uses magnetic heat to generate high volumes of humidity-free, low emissions heat for almost any large area. This economical heating solution quickly produces a tremendous amount of fast dry heat, without the use of spark, friction or flame. A safer alternative to an incineration device attached to a boiler, this flameless heater’s efficiency rating is over 90 percent in many environments and weather conditions. This high efficiency lowers the cost per BTU, resulting in an overall reduced cost of operation. So even in the roughest, toughest weather conditions this user-friendly series is ready to deliver the heat.

Most popular related searches

flameless heater

emission-free heat

fuel efficiency

Performance

Fuel : Type : Diesel
Fan Output : CFM : 6000
Fuel Consumption : GPH : 5.4
Efficiency : % : 95%+
Temperature Rise : °F : 200°F+
Electrical Requirement : External : 12 volt

Components

Engine : OEM / Liter : CAT 4.4L
Exhaust Heat Exchanger : type : Air-to-air
Alternator : type : Wagner Brushless

Technical Data

Dimensions (L x W x H) : in. : 13`3" x 6`10" x 8`8"
Discharge Height (center) : in. : 3`10.5"
Shipping Length : in. : 8`7" x 7`3" x 7`9"
Dry Weight : lbs. : 5,700 lbs.
Fuel Capacity (min. run time)(1) : gal / hrs : 185 US gal.

Control System

Electronic : Murphy
Remote Thermostat : NA
System Protection : Standard
Overheat : Standard
Low Fuel : Standard
Over Speed Shutdown Valve : Standard
Telematics : Optional

Trailer / Enclosure

Hitch : type : Pintle or Ball
Lifting Crane Eyes : qty. : 4
Fork Lift Pockets : Skid
Monitoring Beacon : Standard
Emergency Stop Button : Standard
Liquid Containment (Secondary) : Standard
Axle (Torsion) : qty. : Single
Electric Brakes : Standard
Discharge Ports : qty. / dia. (in.) : 2, 16"
Recirculation Ports : Standard
