Leice - Model WindMast 350-MB -Floating Buoy Wind Lidar
WindMast 350-MB system is developed based on fully independent intellectual property rights and includes a domestically produced wind lidar, a large buoy platform, a self-supply power system, BeiDou positioning and communication technology, and a motion platform attitude correction algorithm. The technical specifications have reached international advanced levels, ensuring accurate measurements and stable operation under harsh meteorological and sea conditions.

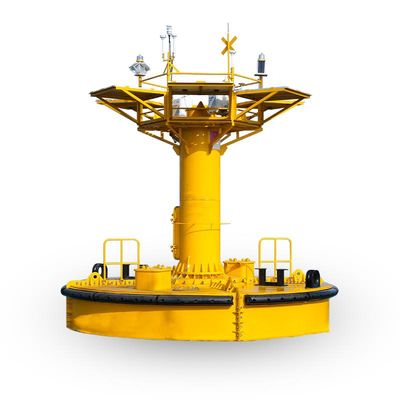

The system is equipped with a 6-meter large buoy platform, offering high reliability, strong survivability, and sufficient energy supply. It is designed to withstand continuous rainy and typhoon conditions at sea, ensuring continuous high-precision wind measurements.
It is widely used in offshore wind resource assessment and evaluation, offshore wind turbine power curve testing, offshore wind power forecasting, and atmospheric boundary layer dynamics research in marine environments.
- Real-time Attitude Correction
- High accuracy
- High resolution
- Flexible deployment
- Unmanned operation
- High reliability
- High survivability
- High robustness
- Laser Wavelength: 1550nm
- Maximum Detection Distance: 350m
- Spatial Resolution: Meter resolution, any 24 altitudes in the range of 40m to 350m (configurable)
- Time Resolution: 1s~10min(configurable)
- Wind Speed Measurement Accuracy : ≤0.1m/s
- Wind Direction Measurement Accuracy : ≤3°
Second and time-averaged wind speed and direction, specified time-averaged wind speed and direction, maximum/minimum horizontal wind speed, turbulence intensity, wind shear index, vertical velocity, signal-to-noise ratio, GPS position and time, lidar status data, ground atmospheric temperature, humidity, and pressure data.
