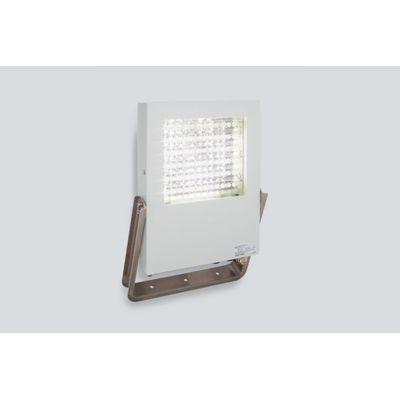

STAHL - Model Series 6125/2 -Floodlight LED

SHARE

Art. No.: 284564. Product Type: 6125/2122-3501-6015-331. Max. ambient temperature: +60 °C, min. ambient temperature: -60 °C. Lamp wattage: 160 W. AC rated operational voltage: 110 - 277 V. Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc. Certificates: ATEX (BVIS), Brazil (ULB), IECEx (BVIS), India (PESO). Lamp: LED. Light distribution: Medium-beam. Enclosure material: Stainless steel 1.4301. Max. solid connection terminals: 6 mm². Drilled holes: 3 x M25.

Most popular related searches
LED lighting
floodlight
battery system
LED luminaire
  • MY R. STAHL: 6125B
  • Product Type: 6125/2122-3501-6015-331
  • Highlights:
    • LED high-power floodlight with power consumption of up to 225 W
    • Wide-range voltage input between 110 V and 277 V (50 Hz and 60 Hz)
    • Suitable for operation in central battery systems and DC mains (176 V to 264 V DC)
    • Three wattage classes are available: 100 W, 160 W and 225 W
    • An enclosure made from stainless steel 316L is also available for marine and offshore applications.
    • Optionally available with DALI interface
  • Functional Description: The new generation of LED floodlights for Zone 1 also relies on the tried-and-tested, robust stainless steel enclosure (optionally seawater-resistant stainless steel 316L). However, thanks to their smaller design and a new generation of drivers, they weigh significantly less, thereby improving ergonomics during installation and operation. Now with three power classes and the three tried-and-tested light distribution curves, the LED floodlight generates three colours of LED light – warm white, neutral white and cold white.
