Flowplant - Model HPU - Water Hydraulic Power Units
From High Pressure Pumps for the Oil & Gas Industry

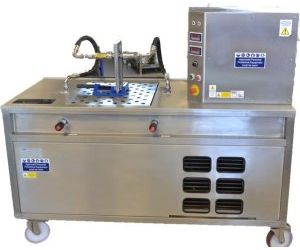

Flowplant water hydraulic power units (HPU’s) are available at operating pressures up to 700 bar. They can be configured to provide hydraulic power, flushing and testing functions, within one machine. This flexibility maximises asset utilisation and minimises ownership costs. The Harben® pump will handle most low viscosity oil (10cSt) and water-based fluids at temperatures up to 60oC. This makes it the ideal multi-purpose high pressure pump. Filtration levels and circuitry can be defined by our clients or alternatively Flowplant are happy to provide standard units.
-
Most popular related searches
Product Details
The user interface can be via simple push button control panels but HMIs are often utilised for more complex units. If remote connectivity and monitoring is required, PLCs can be incorporated so that pressure, flow and operating data can be exported for remote monitoring.
Our engineers will work with you on the precise requirements of your hydraulic system. After all project parameters have been agreed we will provide a P&ID and GA for sign off prior to manufacture.
Key Features
- Data sheet shows an example of the units manufactured at Flowplant
- Manufactured to customers requirements
- Hydraulic Power Unit capable of supplying constant high pressure fluid supply
- Operating pressure to 700 bar
- PLC and HMI control
Technical Specifications
Model: Water Hydraulic Power Units (HPU)
- Pressure and Flow
- High flow, medium pressure: 20 lpm @ 365 Bar
- Low flow, high pressure: 4 lpm @ 1034 Bar
- Pump: Harben® ‘P’ type radial piston diaphragm pump for pressures up to 365 Bar. Seal-less design suitable for
- pumping low lubricity fluids at high pressure. For high pressures up to 1034 Bar the swash plate water glycol piston pump can be engaged.
- Motor/Starter: Motors are IP55 rated for ingress protection. The Harben® ‘P’ type pump is powered via an invertor driven motor, controlled via an HMI screen. The piston pump is powered via a Star/Delta 3 phase motor, controlled via
- an HMI screen.
- Control System: Pressure and flow monitoring with the option of feedback control for the operator. There is a full touch screen with remote operation and data logging available.
- Services Required:
- Electrical supply - 440v 3 phase 50 Hz (other options available upon request)
- 9 Bar air supply, flow negligible
- Pressure Relief Valve:
- PRV set to 10% WP. Lloyd’s Register certification available upon request.
- Pressure Regulating Valve
- Medium flow: Pressure control valve allows users to supply the required operating pressure to test the system
- High pressure: Downstream monitoring pressure regulating valve
- Sampling Fluid sampling on tank and return line
- Accumulator
- Medium pressure: 50 litres, 365 Bar bladder accumulator. Stainless steel 316 wetted parts
- High pressure: 20 litres, 1,034 Bar piston accumulator. Full stainless steel 316 construction
- Supply Tank: 250 litres supply tank manufactured form 316 stainless steel. Full temperature and level monitoring via HMI.
- Cooling: Thermostatically controlled water cooled plate cooler to maintain fluid temperature

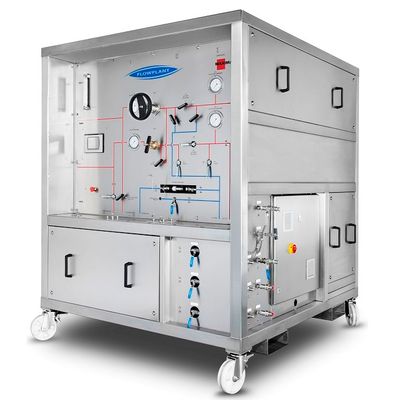

- Frame: Fully enclosed sound attenuated, stainless steel trolley unit supplied with forklift pockets for easy transportation
- Filtration: 1,034 Bar, 3 micron high pressure filter and 40 Bar, 3 micron low pressure filter. Fitted with visual clogging indicators.
- Dimensions: 1800mm Long x 2080mm Wide x 2300mm High *
- Weight: Dry weight: From 2215 kgs *
