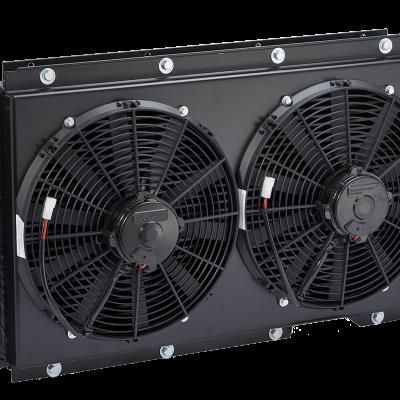

TTP - Model MA Series -Fluid Air Fan
The MA Series provides rugged high performance for demanding mobile equipment oil cooling applications. Select from a broad line of standard units all featuring proven brazed aluminum P-BAR™ plate and bar core technology, engineered with an aggressive turbulator that produces ultra-high heat transfer. Available with axial fans equipped with brushless DC electric motors for extended life, minimal electrical load of over 82% efficiency, custom fan speed control and lower ambient noise. Add the MAGHEX programmable fan controller and sensor for an easy-to-install and low cost alternative to complex control systems.
Most popular related searches
- Now available with brushless DC fan motors
- Bar and plate brazed aluminum core
- Rugged, lightweight and compact
- Provides the best heat transfer per given envelope size while minimizing pressure drop
- Air-side fin design minimizes fouling and static pressure ensuring long-term, reliable performance
- Fans compliant with IP 68 (brushed) and IP6k9k (brushless) with fully sealed motors
- Welded aluminum fittings/ports and manifolds ensure structural integrity
- Standard SAE ports – NPT and BSPP ports available
- Customized units are available to meet your specific performance requirements
- Brushless DC fan motor
- Serviceable internal pressure bypass
- Temperature sensors
- All catalog product is available with short lead-times
- Expert application engineers are available to select and size the right product for your application
- Custom designs are available
- Maximum Operating Pressure 250 PSI
- Maximum Operating Temperature 300°F
- Core - Brazed Aluminum Bar and Plate
- Tanks – 5052 Aluminum
- Nose Bar & Little Bar – 3003-H Aluminum
- Air Fin, Plate, Turbulator & End Plate – 3003-O Aluminum
- Connections - Aluminum
- Core Mounting Bracket - Brazed Aluminum
- Petroleum/mineral oils
- Oil/water emulsion
- Water/ethylene glycol
