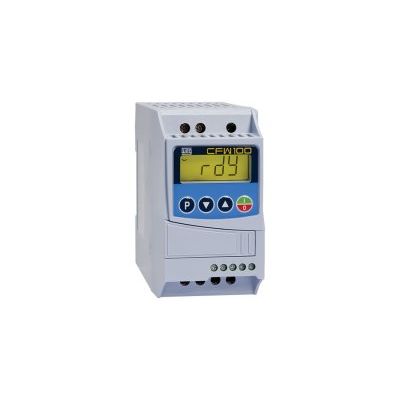

WEG - Model CFW100 Series -Frequency Inverter

Features and Benefits

• Power range: 0.18 to 0.75 kW (0.25 to 1 HP)
• Single-phase
• Power supply voltage: 200-240 V
• Scalar control (V/F) or vector control (VVW)
• Overload capacity: 150% corrient in 60 sec.
• External RFI Filter (accessory)
• Ambient temperature -10 ºC to 50 ºC (14 °F to 122 °F)
• All the electronic boards are conformally coated classified as 3C2 according to IEC 60721-3-3 standard
• Protection Degree IP20
• HMI with 2 Parameters built-in
• SoftPLC function built-in

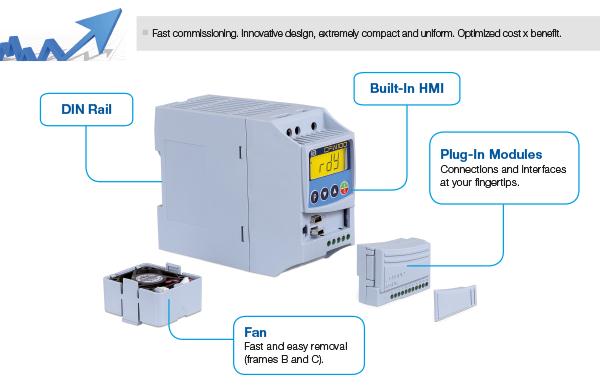

• Flash memory module: In few seconds, it is possible to download the programming from a CFW100 to others without powering them up
• Plug-in modules: I/Os, USB, Bluetooth®, Infrared and Fieldbus communication
• Communication protocols: Modbus RTU (RS-485) and CANopen
• WLP and SuperDrive G2 free software

WLP (WEG Ladder Programmer)

The WLP or "Weg Ladder Programmer" is a software that allows the user to program using ladder language, command and monitoring. It is a powerful 32 bits tool that grants you characteristics and functionalities to create professional applications through simple mouse clicks.

Software Superdrive G2

SuperDrive G2 is a tool for parameter setting, command and monitoring of drives. With intention to make the use of drives as easy and convenient as possible, the software provides user-friendly viewing, manipulating, and editing data with the drive. The data can also be stored and retrieved.

• Machinery
• Centrifugal pumps
• Process dosing pumps
• Fans / exhausters
• Stirrers / Mixers
• Lift doors
• Roller tables
• Granulators / palletizers
• Rotary flters
• Small handling applications
