WEG - Model CFW10 Series -Frequency Inverter
FromWEG S.A
Easy and optimized resource for quick installation, programming and operating. The CFW10 covers power levels from 0.18 to 4 kW (0.25 to 5 HP). Make your life easier can be a fast installation or a built-in keypad to configure instead trimpot and dip switch or even a quick replacement of similar product. The CFW10 series are exactly all that together in a compact product.
Most popular related searches
- Power range: 0.18kW to 4 kW (0.25 to 5 HP)
- Single-phase and three-phase
- Power supply voltage: 100-127 V and 200-240 V
- Scalar control (V/F) or vector control (VVW)
- Overload capacity: 150% corrient in 60 sec.
- RFI Filter built-in (optional)
- Ambient temperature -10 ºC to 50 ºC (14 °F to 122 °F)
- All the electronic boards are conformally coated classified as 3C2 according to IEC 60721-3-3 standard
- Protection Degree IP20

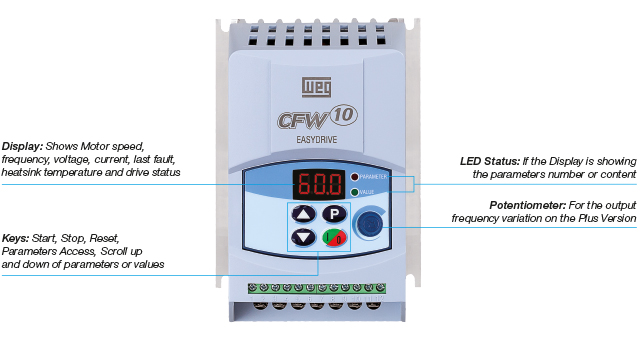

- HMI built-in
- Available versions: Standard, Clean, Cold Plate and Potentiometer
- Four isolated programmable digital inputs
- Programmable relay output
- One isolated programmable analog inputs
- General Machines
- Centrifugal Pumps
- Processing Pumps
- Fans / Exhausters
- Stirrers / Mixers
- Extruding Machines
- Roller Tables
- Cutting Machines
- Rotating Filters
