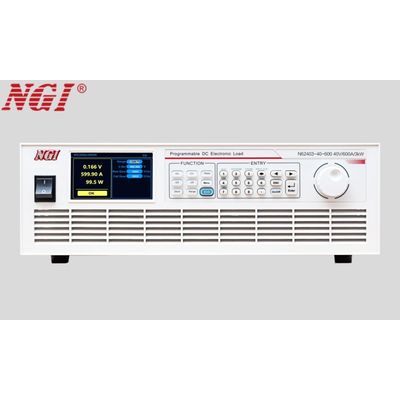

NGI - Model N62400 Series - Fuel Cell Testing Programmable DC Electronic Load Machine

The N62400 Series Fuel Cell Testing Programmable DC Electronic Load, developed by NGI, leverages the company's extensive experience in fuel cell testing to offer high precision, reliability, and cost efficiency. This advanced equipment can handle high current loads even under ultra-low voltages, with a minimum operating voltage of just 0.2V at 1200A. Housed in a 19-inch 3U chassis, this device is versatile enough for both benchtop use and 19-inch rack installations. Key features include a power range of 0-6000W, voltage range of 0-40V, and current range of 0-1200A. It supports multiple operation modes including Constant Current (CC), Constant Voltage (CV), Constant Power (CP), and Constant Resistance (CR). The hardware also ensures stable and reliable CR/CP functions, and programmable features allow for the adjustment of rise and fall slew rates. Enhanced communication options include LAN, RS232, and CAN, while additional testing capabilities cover charge and discharge tests, and Over-Current Protection (OCP) tests. Software programmability extends to up to 100 sequence files with 50 steps per file, along with an analog programming interface, current monitoring, and remote/local trigger functions. It also offers short-circuit simulation and an optional built-in ESR test function. Ideal for fuel cell test environments and other low-voltage, high-current applications, the N62400 series ensures comprehensive data collection across the entire voltage range to aid in fuel cell performance studies.
