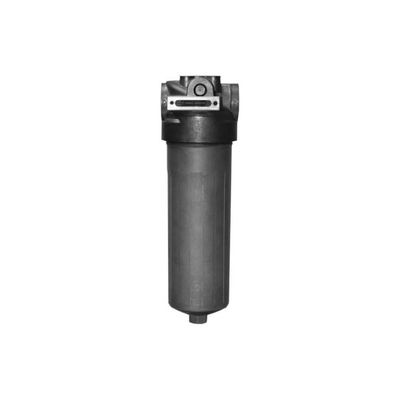

RCI TechnologiesModel IBF 35 -Fuel Filters

SHARE

Variety of differential indicator port options (visual and electrical indicators). Leak proof bar indicator, rugged visual indicator with protective aluminum shield is standard. Proprietary bowl to element seal – minimizes potential leakage point by use of one seal on element. Cartridge style element (non spin-on) that is proprietary and patented with integrated bypass valve features. Light weight bowl design with replaceable element minimizes landfill waste. Mounting interchangeability with competitor’s filter head. Includes one 3-micron element (standard); 5 microns, 10 microns, and water-removal elements also available.

Most popular related searches
  • FLOW RATE:35 gpm
  • CONNECTION SIZE:SAE 16
  • PARTICULATE REMOVAL EFFICIENCY:3 micron
  • DIMENSIONS:12.83" L x 4.00" W
  • MAXIMUM OPERATING PRESSURE:725 psi (50 bar)
  • STANDARD ELEMENT MODEL:E-GDFE-3
  • MATERIAL:Cast Aluminum Porting Head, Aluminum Element Case
  • WEIGHT:3.8 lbs.
