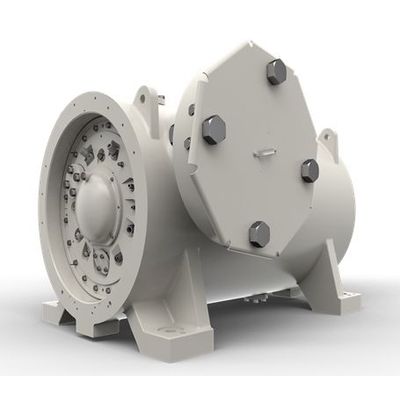

STI - Model C40M - Gas Compressor
Solar’s C40 family of gas compressors are designed for applications with the Centaur 40, Centaur 50, Taurus 60, Taurus 70, Mars 90, Mars 100 and Titan 130 gas turbines. These compressors combine high efficiency and wide flow range with a robust design and ease of restaging. C40 gas compressors have the latest state-of-the-art technology combined with the experience and reliability that comes with building and installing over 5000 compressors. These compressors are designed in compliance with API 617, a requirement for the severe environments and operating conditions this equipment may encounter.
Most popular related searches
Units: US
- Stages: 1-6
- Maximum Casing Pressure: 2,500 psig
- Maximum Flow: 9,500 acfm
- Maximum Total Head: 80,000 ft-lbf/lbm
- Efficiency - %: > 85% isentropic
- Maximum Speed: 14,300 rpm
- Maximum Torque: 130,000 lbf-in
Units: Metric
- Stages: 1-6
- Maximum Casing Pressure: 17,235 kPag
- Maximum Flow: 269 m3/min
- Maximum Total Head: 239 kJ/kg
- Efficiency - %: > 85% isentropic
- Maximum Speed: 14,300 rpm
- Maximum Torque: 14,690 Nm
