STI - Model C33 - Gas Compressor

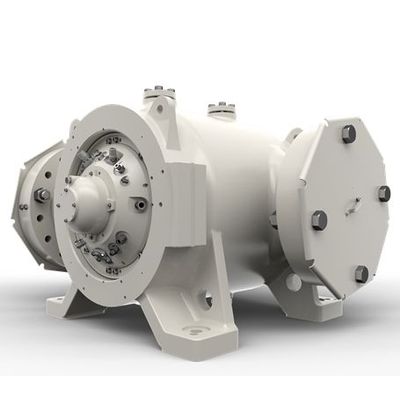

Solar`s C33 family of gas compressors is intended for use in gas gathering, recompression, injection/withdrawal and certain high-pressure pipeline applications. The C33 compressors are designed for single-body and tandem applications with the Saturn 20, Centaur 40, Centaur 50, Taurus 60, Taurus 70, Mars 90, Mars 100 and Titan 130 gas turbines. C33 gas compressors have the latest state-of-the-art technology combined with the experience and reliability that comes with building and installing over 5000 compressors. These compressors are designed in compliance with API 617, a requirement for the severe environments and operating conditions this equipment may encounter.
Most popular related searches
Units: US
- Stages: 1-12
- Maximum Casing Pressure: 2700 psig
- Maximum Flow: 9500 acfm
- Maximum Total Head: 86,000 ft-lbf/lbm
- Efficiency - %: >80% isentropic
- Maximum Speed: 18,620 rpm
- Maximum Torque: 66,000 lbr-in
Units: Metric
- Stages : 1-12
- Maximum Casing Pressure : 18,620 kPag
- Maximum Flow : 269 m3 /min
- Maximum Total Head : 257 kJ/kg
- Efficiency - % : >80% isentropic
- Maximum Speed : 18,620 rpm
- Maximum Torque : 7457 Nm
