STI - Model C65 - Gas Compressor

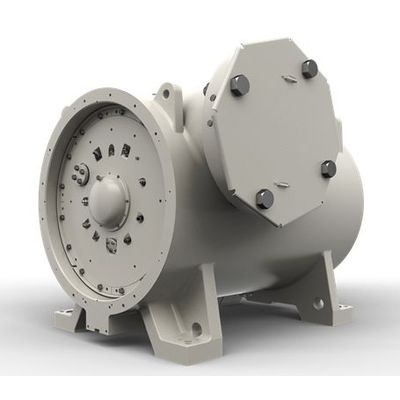

The C65 gas compressor has the latest state-of-the-art technology combined with the experience and reliability that comes with building and installing over 5000 compressors. This compressor is designed in compliance with API 617, a requirement for the severe environments and operating conditions this equipment may encounter.
Most popular related searches
Solar’s C65 family of gas compressors are designed for applications with the Mars® 90, Mars 100 and Titan™ 130 gas turbines. These compressors combine high efficiency and wide flow range with a robust design and ease of restaging.
Units: US
- Stages: 1-2
- Maximum Casing Pressure: 1600 psig
- Maximum Flow: 20,000 acfm
- Maximum Total Head: 36,000 ft-lbf/lbm
- Efficiency - %: >89% isentropic
- Maximum Speed: 10,500 rpm
- Maximum Torque: 210,000 lbr-in
Units: Metric
- Stages: 1-2
- Maximum Casing Pressure: 11,030 kPag
- Maximum Flow: 680 m3 /min
- Maximum Total Head: 108 kJ/kg
- Efficiency - %: >89% isentropic
- Maximum Speed: 10,500 rpm
- Maximum Torque: 23,725 Nm
