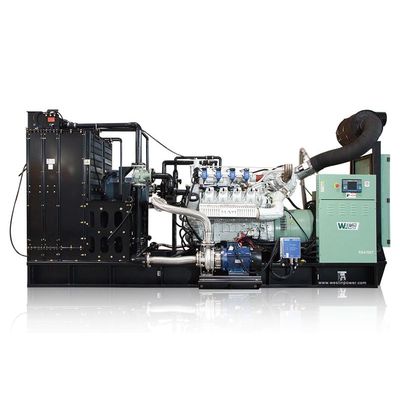

Westinpower - Gas Generator Sets with MAN Engines

SHARE
Westin Power offers gas generator sets powered by MAN engines, designed for both natural gas and biogas applications. The RN - N Series focuses on natural gas with 230/400V, 50Hz specifications, while the RB - N Series caters to biogas requirements under the same voltage and frequency parameters. These systems feature various alternator options, including Stamford, Leroy-Somer, Sinocox, and Mecc Alte. They utilize advanced controllers like the SGC 420 with enhanced battery charge management for AMF applications, and the AGC150, a microprocessor-based digital unit for comprehensive control and protection, adaptable for individual or synchronized generator sets. The generators operate on a 50Hz/1500rpm or 60Hz/1800rpm engine configuration with specific gas supply pressure requirements and optional electrical control systems, intake valves, and water tank configurations. Customers need to provide details of gas composition and required intake gas pressure and volume for a customized solution.
Most popular related searches
gas generator set
generator set
natural gas generator
synchronization generator set
automatic transfer switch
power generating system
power generation system
advanced combustion
power generation
synchronous generator
  • High power and maximum efficiency;
  • Low consumption of lubricating oil and fuel, long maintenance intervals and reduced operation costs;
  • Cutting-edge combustion technology, low emissions;
  • Compact structure, easy installation and less floor space;
  • On-site commissioning, ensuring high reliability;
  • Specially designed gas fueled generator set, with long service life;


Standard Features (for reference only)
  • Westinpower provides one-stop service to meet all customers' needs of power generation system and components.
  • All generator sets and components undergo rigorous prototype testing, precise manufacturing and strict inspection.
  • Warranty: 18 months from date of shipment, after 1000 hours of running, or 1 year from the date of initial startup (whichever comes first).
  • Options of imported engine that complies with EU and US EPA emission standards are available. The majority of domestic brand engines meet the requirements of the national Stage III emission standard, and some generator engines from domestic brands can meet US and European emission standards, such as Yuchai engine. Please see the file "Comparison of US, EU and China emission standards for diesel engines used in non-road mobile machinery (NRMM)".
    US EPA Tier emission standards: Tier1, Tier2, Tier3, Tier4 Interim, Tier4 final
    EC Stage emission standards: Stage I, Stage II, Stage IIIA, Stage IIIB, Stage IV
    China (Nonroad) emission standards: Stage II, Stage III




Other Features (for reference only)
  • Optional ATS (Automatic Transfer Switch) automatically switches between the gas generator and mains in the case of a power failure.
  • WASS (Westinpower Auto Synchronization System) enables multiple gas generator sets to be synchronized and connected in parallel.
  • Double stacking of generator sets maximizes the utilization of single shipping container' volume.

Alternator Features
  • The alternator converts mechanical energy of water turbine, steam turbine or internal combustion engine into electrical energy in the form of alternating current.
  • The generator alternator works on the principle of electromagnetic induction and electromagnetic force. It makes use of external rotating power to produce an electrical current induced in the conductive material using the electromagnetic induction method.
