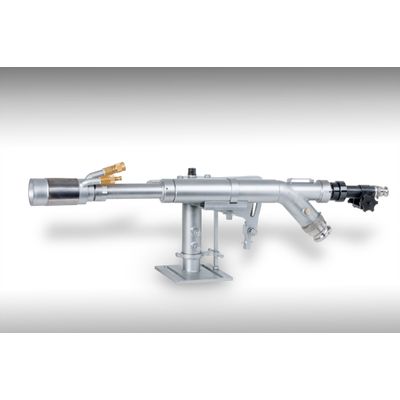

FlammaTec - Model FreeJet -Gas Injector-Type Burner
FT FreeJet gas injector-type burner creates extremely low gas impulse that slows down the combustion process and increases soot formation. It leads to optimal heat transfer from combustion to the glass melt, improved furnace efficiency, maximum pull and extremely low emission when replacing conventional burners.
TECHNICAL SPECS
fuel
natural gas, LPG, LNG, propane
energy output
0.2 – 8.5 MW (3 sizes)
purge air
≥ 0.1 bar (non-?ring period)
water cooling
10 – 20 l/min (continuous)
CAPABILITIES
applicable under-port ?ring for regenerative cross-?red and end-port furnaces
injection of the fuel into the furnace following the opening angle of a free gas jet
adjustable gas velocity, vertical, and horizontal angle
injector positioned flush with inner side of furnace chamber
position requires water-cooled diffusor
- burner technology achieves low NOx emissions
- increased energy ef?ciency
- lower crown and waste gas temperatures
- lower speci?c energy consumption
- increased melting capacity
- decreased thermal corrosion of refractories leads to increased furnace lifetime
- low maintenance
- less burner block corrosion produces fewer defects
- FT FreeJet gas injectors operating ± 30% of nominal capacity
- injector brackets
- stainless steel ?exible hoses
- optimization of melting process using CFD simulation
- rental and maintenance contract
- port design optimization
- regular service during and after warranty period
- control panels & safety trains delivery
