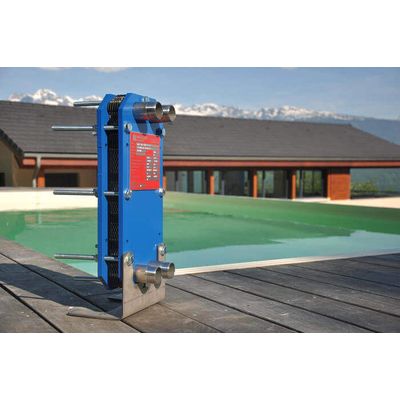

Barriquand - Gasketed Plate Heat Exchanger

• Evolutionary countercurrent heat exchangers
• Minimal pressure drop, high turbulence, very high heat transfer coefficient
• Easily openable and cleanable on both circuits
• Joints are clipped or glued according to model
• Options: double-walled plates, wide gap plates…
• Easy to install

Suitable for loaded fluids, the wide gap guarantee a constant fluid flow space between the plates. Chemically cleanable, they offer high thermal performances.

Application example: heating / cooling of juice, sauces, mustards; pasteurisation of viscous creams, heat recovery from waste-water, treatment of sewage sludge…

• 9 plate sizes
• Average groove depths from 5 to 11,5 mm
• Flange diameters from 32 mm to 300 mm (1″1/4 to 12”)
• Possibility of special connections
• Differential pressure up to 6 bars

• Plates: AISI 304, 316, Titanium, Hastelloy®, etc.
• Gaskets: Nitrile, EPDM, Viton, etc.
• Frames: Carbon steel with epoxy paint – stainless steel (for industrial and food processing uses)
