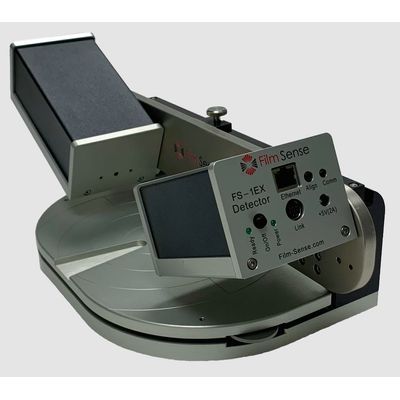

Film Sense - Model FS-1 - (Gen. 3) Ellipsometer
FromFilm Sense LLC
The 3rd generation Film Sense Multi-Wavelength Ellipsometer systems are now available! The primary improvement in this generation is the motorized source polarizer, which enables auto-calibration and zone-averaged measurements. The new systems offer the same benefits of the patented* FS-1 ellipsometer technology (long life LED light sources, fast and reliable no moving parts detector, compact design, and web browser software interface), while maintaining ease of use and affordability.
Most popular related searches
- Compact optics: Source 142 x 80 x 60 mm, Detector 110 x 80 x 60 mm
- Simple connections: +5V wall plug power supply, Ethernet, and Source-Detector link cables
- Motorized Source Polarizer:
- provides automated instrument calibration
- enables zone-averaged measurements, for improved measurement accuracy
- 4x more intensity (compared to original FS-1), and updated detector electronics provide improved measurement precision: 2x for ex situ, 4x for in situ
- 65° Angle of Incidence.
- Manual sample loading and height adjustment.
- Sample sizes up to 200 mm dia. and 20 mm in thickness.
- Sample tilt with +/-2° range.
- Beam size on sample: 4 x 9 mm.
- Compact footprint (180 x 400 mm) and light (5 kg).
- 4 wavelengths, 450 – 660 nm spectral range (replaces the original FS-1)
- Excellent choice for measuring single layer transparent films in the 0 – 2 μm thickness range, with precision down to 0.0004 nm
