Cascadia Motion - Model SS-250-115 -Gen2 Single Stack Electric Motor and Generator

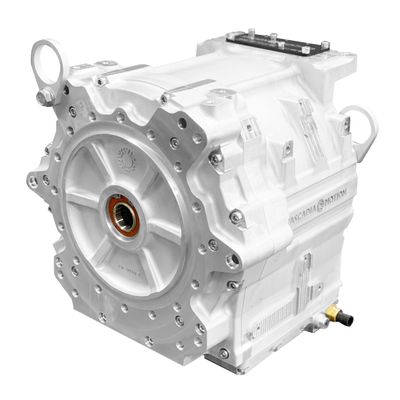

The SS-250-115 is an electric motor and generator designed for high power applications in both on- and off-road vehicles and power generation. It features an integrated sump, mechanical oil pump, and heat exchanger. The SS-250-115-D model delivers a peak torque of 500Nm at 730Arms, achieving up to 375kW (500hp) at 700Vdc, while the SS-250-115-S model provides the same torque at 350Arms with a maximum power of 210kW (280hp) at 700Vdc. These variations use either series wound or parallel wound cores. Detailed product specifications can be found in the datasheets.
