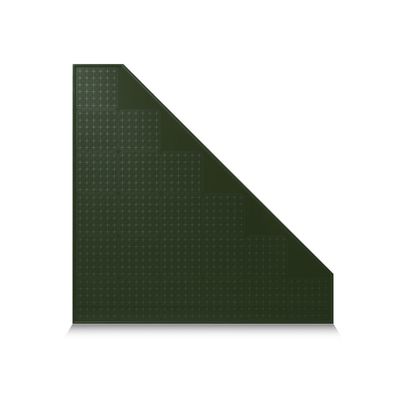

Trienergia - Model TRIxxxTP -GG – Triangular Trienergia Module GREEN
Triangular Monocrystalline Photovoltaic Module with 21 cells M6 (166 x 166mm) to combine to the rectangular Trienergia module BACKCONTACT – GREEN Frame in black anodized GREEN Connector MC4
product Warranty: 20 years performance Warranty: 12 years 90% | 30 years 82 Certificates: IEC 61215 – IEC 61730/1 – IEC 61701 – FIRECLASS 1
Most popular related searches
ethylene vinyl acetate
monocrystalline photovoltaic module
photovoltaic module
solar simulation
monocrystalline photovoltaic
solar panel
photovoltaic
photovoltaic cell
The production process, completely automatic, provides:
- Positioning of the conductive backsheet made with EBfoil® BYS, which acts as a contact and connection for the positive / negative contacts on the back of the solar panel
- Laying of the cells that make up the photovoltaic module: these are glued on the backsheet by the silk-screen dispensing of a special conductive glue; at the same time a quality control is performed on the cells:
– Chipping: chipping on the edge of the cell
– Breakage: cell breakage
– Microcrack: cell micro-perforation not visible to the naked eye
– Positioning: positioning of the cell - Application of an EVA (ethylene vinyl acetate) sheet, very flexible and elastic, which encapsulates the cells with the backsheet
- Glass application
- Flipping, rotation of the module to enter lamination resting on the glass
- Panel lamination
- Framing, assembly of the frame
- Tests: solar simulator and electroluminescence
Available models:
- TRI115TP-GG
