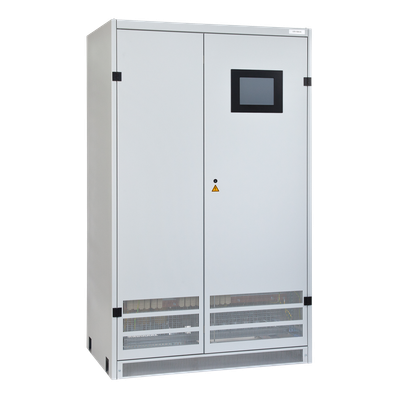

GK - Model Type UPS-7011 (1~) - Type USV-7013 (3~) -Industry UPS Systems
Rated power up to 200 kVA 1~ up to 500 kVA 3~. Scope of application. Our static uninterruptible power supply (UPS) systems comply with the VFI-SS-11 classification according to IEC 62040-3. With their robust industrial design, they support a secure consumer supply in continuous operation. In times of energy transition, our UPS systems protect against system failures caused by interruptions and disturbances in the grid feed. Customers from the telecom, railroad, power generation / distribution, chemical industry, among others, have been relying on the high quality and reliability of our UPS systems for decades.
Most popular related searches
UPS system
railway power supply
battery energy storage
battery cabinet
isolation transformer
power supply system
battery testing
energy storage inverter
energy storage
power generation
Gustav Klein UPS systems are equipped with a colour touch screen display and consist of the components:
- IGBT rectifier (regenerative) with isolation transformer
- Battery (energy storage)
- IGBT inverter in PWM technology with galvanic isolation at the output
- Electronic bypass
- Manual bypass
- Highest availability and long service life
- Spare parts delivery for at least 15 years
- Efficient and cost-effective maintenance and servicing due to well thought-out unit design
- Fanless UPS design for smaller outputs
- Interruption time 0 ms
- Compatible with various battery types (including lead closed or sealed, NiCd)
- Direct display and intuitive operation via color TFT display (including event ring memory, password-protected user levels)
- Supports consumption-optimized networks (input THDi ≤ 6%, hardly any reactive power consumption, battery test by means of mains regeneration and full UPS power).
- High performances available:
single-phase up to 200 kVA, three-phase up to 500 kVA - Many custom options available
- Mains/output voltage deviating from 400 V AC
- Battery voltage DC link 110 V DC, 220 V DC or 372 V DC
- Battery rack, battery cabinet
- Battery cabinet fan with fan monitoring
- Earth fault monitoring
- Integration distribution
- Isolating transformer acc. VDE 0558-507 or ÖVE / ÖNORM E 8007 in bypass cabinet
- Parallel running device
- Large selection of interfaces available (e.g. SNMP, Modbus)
- separate bypass cabinet
- increased/specific short-circuit currents
- Optionally, our UPS systems are also available based on thyristor technology (USV-7001 1~ or USV-7003 3~).
