GK - Thyristor Rectifiers

FromGustav Klein GmbH & Co. KG

SHARE

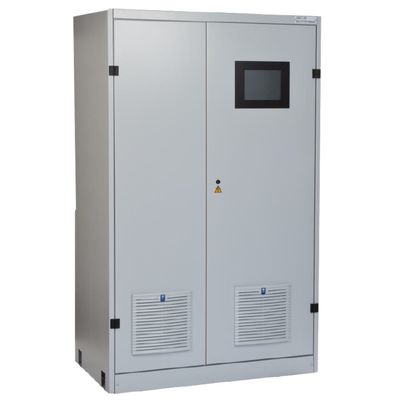

GR-3811 with touch screen TFT display. GR-3812 with LC-Display. Equipment: Thyristor rectifier 6-pulse (12-pulse optional). Input contactor for rectifier. Automatic charge. Analogue control. Microprocessor-controlled monitoring. Digital display with event ring memory (non-volatile): GR-3811: colour TFT panel with touch screen, GR-3812: LC display with LED indicators in mimic diagram. Power unit with two-stage temperature monitoring (Warning message / shutdown). Galvanic isolation between input and output. 8 remote signals (potential-free contacts, configurable). RS232 interface. Can be connected in parallel. Programmable battery test.

Most popular related searches

railway power supply

low voltage regulations

battery discharge

battery testing

charge controller

industrial power supply

battery temperature

industrial power

User-friendly, intuitive operation
3 Charging characteristics IU (automatic)
Fanless design (natural air cooling by convection)
Design according to current standards

Specific electrical parameters, e.g. frequency / voltage
Specific mechanical parameters, e.g. protection class (IP21 and higher), base plate
Equipment and functionalities, e.g.: Protective devices (MCCB, surge arrester …), monitoring (fan, earth fault …), interfaces (Profibus, Modbus, SNMP …), temperature-controlled battery charging …
More on request

GR-3811 and GR-3812

Rated voltage: 24 / 48 / 60 / 110 / 120 / 220
Rated current: Up to 1500 A
Rectifier version: Galvanically isolated, thyristor 6-pulse, >500 A 12-pulse
Input voltage: 3/N/PE AC 400/230 V +/-10%
Voltage tolerance (output) ±1 %
Frequency: 50 Hz ±5 %
Charging code: IU charge acc. DIN 41772 3 (continuous, heavy and forming charge)
Voltage ripple: <2% eff. without battery
Security: 1 acc. EN 60950-1
Protective conductor current: < 5 % INom typ. 50 mA
Protection class: IP 20 (floor IP00) according to EN 60529
Permissible installation altitude: 1000 m above sea level min. Air pressure 870 hPa
Installation site

Premises with restricted access area
Installation on concrete or another non
flammable surface

Connection: front, bottom - accessible after opening the door
Display and control unit

GR-3811: Color TFT - panel with touch screen display
GR-3812: LC-Display

Remote signalling (terminal connection) Contact rating

AC 250 V 6 A 1500 W
DC 250 V 0,4 A 100W
DC 60 V 0,7 A 42 W
DC 24 V 6 A 144 W

8 signals / 2 potential-free change-over contacts per signal

Operation
Battery discharge
Forewarning
Deep discharge
Mains fault
System malfunction
3 x reserve

Test voltage
Input / Output: 5.3 kVDC
Input / body: 2.3 kVDC
Output / body: 2.8 kVDC

Low Voltage Directive: 2014/35/EU
EMC Directive: 2014/30/EU
RoHS Directive: 2011/65/EU
Permissible environmental conditions:
Storage according to EN 60721-3-1: 1K21 / 1M11 +5 to +40 °C
Transport according to EN 60721-3-2: 2K12 / 2M4 -45 to +70 °C
Operation according to EN 60721-3-3: 3K22 / 3M11 +5 to +40 °C
5-85 % rel. Humidity, no condensation: Pollution degree 2
