AEG - Model ISO Glass ID 162 - Glass ...

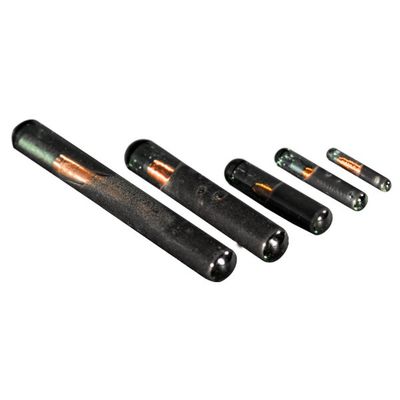

AEG - Model ISO Glass ID 162 -Glass Transponder

The ID 162 is a transponder designed for animal identification in compliance to ISO 11784/11785. It is available as injectable transponder as well. Types with EM4305 und Hitag S are programmed with customer specific data or country coding.

Most popular related searches

electrical system

ELECTRICAL CHARACTERISTICS

reading system ISO FDX-B
operational frequency 134.2 kHz
memory size chip dependent
IC EM 4305, Hitag S

ENVIRONMENT

storage temperature -40°C up to +85°C
operating temperature -25°C up to +85°C
housing protection IP 68
schock & vibration IEC 68-2-6 / 29

DIMENSIONS

Weight 0.03 g | 0.09 g | 0.1 g | 0.7 g | 1 g
diameter 1.41 mm | 2.12 mm | 3 mm | 3.85 mm
Length 8.5 mm | 12 mm | 13.5 mm | 23 mm | 32 mm
Material Biocompatible glas

ADDITIONAL INFORMATION

Default manufacturer code is 968 (AEGID). Other manufacturer codes or country codes are available on request.

USAGE

Animal Identification
