Green - Model MAT - 30770 -Electric Wall Heating System

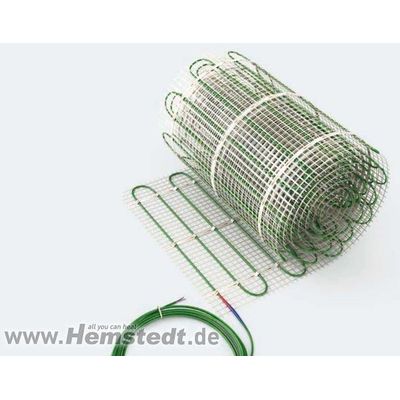

The new, award-winning GREEN ELECTRIC MAT by Hemstedt is a very energy-efficient heating mat that can be used as both underfloor heating and wall heating. The advantage of the GREEN ELECTRIC MAT is it`s designed with two heating circuits that are very energy-efficient and can be controlled separately. That way, for example, the two circuits can be used to heat the house quickly, then one can be switched off while the other one keeps the temperature steady. The output is ideally adjusted to the heat requirements of modern houses.
Wall heating in a low-energy house
The use of a wall heating system is especially sensible in a low-energy house. Most modern houses are designed to be very dense and have not a lot of air exchange with the outside. That can lead quick to damp walls or the formation of mould, for example in bathrooms. Frequent airing can provide some relief, but would be counter-productive to energy-efficiency. It is a lot easier to prevent dampness with a wall heating system.
More comfort through radiant heat and less dust!
In combination with, for example, underfloor heating, a wall heating system provides a very even distribution of warmth. This is both pleasant for the user and reduces air flow within the house, that can whirl up dust or pollen, which is a plus for people suffering from allergies.
Retrofitting wall heating
The GREEN ELECTRIC MAT® is extremely thin and uses the HEM-SYSTEM, a patented, sleeveless system of joining the cables. Thus, walls can be retrofitted with heating mats simply and comfortably, for example during restructuring or renovation.
- Operation voltage 230 Volt
- Power output approx. 70/70/140 W/m²
- Cold lead 1 x 4.00 m
- Min. installation temperature +5 °C
- Min. bending radius 6 x dA
- Resistance tolerance -5 %/+10 %
- VDE Regulation according to IEC60800 Ed.3
- Cold-/Warm connection seamless, without heat shrink tube
- Insulation Fluoroplastic
- Delivery width 0.46 m
- Calculation width 0.50 m
