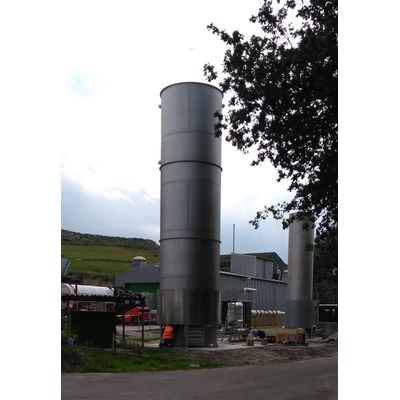

Ground Flare

Temperature controlled ground flares allow for operation between 800 and 950° C (max 1100 °C) guaranteeing maximum methane oxidation. Besides keeping the flaring temperature within the required range, applied insulation is also an excellent noise muffler. In addition to basic components such as self-supporting flare stack, instrumentation, and control panel, according to our standards, every hot ground flare is equipped with: Temperature measuring transmitters; Temperature controller build in the control panel; The 100 mm thick mounted ceramic stack bound; Two air dampers integrated into the body of the stack to control the burning temperature; High retention low NOx burner; Ignition system with the weatherproof electrode; Pilot burner; Fail-save UV flame detector; Flame arrestor. All the valves and additional equipment can be provided in accordance with the ATEX directive.
