GroundTrac - Ground Mount System

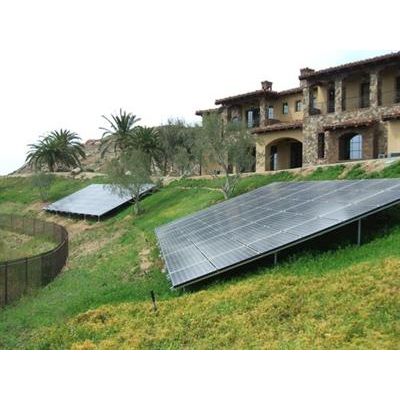

ProSolar`s GroundTrac system is a high-strength, easy to install ground mount for residential and light commercial projects.
Most popular related searches
- Integrates with the self-bonding, patented RoofTrac® system
- Ideal for residential and small to medium-scale commercial projects
- Features UL2703 listed RoofTrac® Rail Clamping Technology
- 1-1/2" Schedule #40 galvanized water pipe design is low cost and readily available
- Each system engineered and load tested to 110 mph wind equivalent per 2013 CBC / 2012 IBC / ASCE 7-10
- 124” x 2-1/2” Deep Channel Rail and 136” x 2-1/2” RoofTrac® support rail spans:
- 6 foot on center max (est. 30 psf snow load)
- 10 foot on center max (non-snow load)
- 164” x 3” RoofTrac® XD support rail
- 8 foot on center max (non-snow load)
