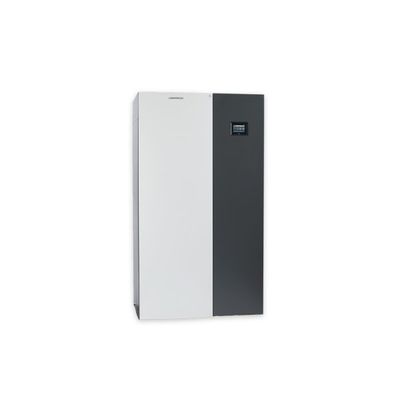

Lämpöässä - Model Vmi -Ground Source Heat Pumps
The full power Lämpöässä Vmi is especially suitable for use as the primary heating system of new and renovated residential buildings and secondary residences, as well as for condominium-specific heating in terraced houses and detached houses. Lämpöässä Vmi is a right choice when heatable area is larger and demand for domestic hot water is high. Lämpöässä Vmi allows heating, cooling and producing domestic hot water in a convenient, favourable and ecological manner all year round. A large 430 L hot water storage tank guarantees that there is always enough domestic hot water.
Control your ground source heat pump with ÄssäControl
ÄssäControl control systems’ touch screen and function shortcuts make the use of a Lämpöässä easy. It is even possible to remote control and monitor the equipment over the Internet by the LAN or WLAN. There are cooling and solar connections as standard in Lämpöässä Vmi.
Technical description
A ground source heat pump can extract geothermal heat from soil, water system or a bore hole. The ground source heat pump unit consists of an integrated hot water storage tank, compressor unit, heat exchangers, closed refrigerant circuit and controlling system. The heat collection fluid in the ground circuit, the refrigerant and the water in the heating network never mix at any stage of the process. Heat is transferred between fluids using plate heat exchangers.
Control system
The ÄssäControl control system developed and manufactured by Lämpöässä is used in Vmi units by default. It allows controlling the operation of the entire geothermal energy system as concerns heating, hot domestic water production, and cooling alike. Thanks to touch screen and function shortcuts it is very easy to use ÄssäControl. The control system collects history data and analysis of this data allows more efficient and economical control over the entire system. There is also optional remote control available for ÄssäControl (WLAN, GPRS, fixed network), which enables remote monitoring of the system.
- ÄssäControl
- 430 L
- 1020 x 700 x 1830
- Vmi 6: 422
- Vmi 9: 426
- Vmi 11: 440
- Vmi 14: 450
- Vmi 17: 458
- Vmi 6: 3 x 10 (16)
- Vmi 9 - 17: 3 x 16 (20)
- Vmi 11 1N~ : 32
- Vmi 14 1N~ : 40
- Vmi 6-17: 400 V 3N~
- Vmi 11: 230 V 1N~
- Vmi 14: 230 V 1N~
- Vmi 6: 8,44 / 7,75
- Vmi 9: 10,44 / 9,82
- Vmi 11: 12,39 / 11,45
- Vmi 11 1N~: 12,14/11,20
- Vmi 14: 15,64 / 14,47
- Vmi 14 1N~: 14,98/13,65
- Vmi 17: 17,75 / 16,71
- Vmi 6: 4,96/3,30
- Vmi 9: 4,84/3,17
- Vmi 11: 4,97/3,33
- Vmi 11 1N~: 4,79/3,11
- Vmi 14: 4,88/3,33
- Vmi 14 1N~: 4,56/2,95
- Vmi 17: 4,84/3,25
- Vmi 6: 5,24/3,88
- Vmi 9: 5,13/3,83
- Vmi 11: 5,29/3,99
- Vmi 11 1N~: 5,10/3,80
- Vmi 14: 5,31/4,02
- Vmi 14 1N~: 4,97/3,73
- Vmi 17: 5,22/3,96
- A+++/A+
- Vmi 6: 38
- Vmi 9: 41
- Vmi 11: 36
- Vmi 11 1N~: 41
- Vmi 14: 38
- Vmi 14 1N~: 43
- Vmi 17: 42
- Vmi 6: 100 - 150
- Vmi 9: 100 - 200
- Vmi 11: 140 - 240
- Vmi 14: 200 - 300
- Vmi 17: 240 - 400
- Utility / Technical room
Additional accessories available for Vmi-model pumps:
Control system for multiple heating circuits
The standard package of a Lämpöässä geothermal heat pump includes a control system for one heating circuit. A control system for two or three heating circuits is also available, enabling different areas within the household to receive heating water of different temperatures. For instance, one temperature for floor heating and the other for a radiator network, or one temperature for the humid rooms and the other for the rest of the household.
Delivery package for two heating circuits includes in addition to standard delivery also pre-installed control system application, valve actuator, the actuator mounting kit, three-way valve, A-energy class heating circuit pump and flow sensor.
Remote access of ÄssäControl
The heat pump unit’s remote access allows the user to monitor and control the operation of the geothermal heat system via the Internet with e.g. a tablet or a smart phone. Remote access is possible in many different ways: via a wired cable web connection, via a WLAN modem or 3G. In addition, ÄssäControl is available with a remote alarm function in case of possible disturbances.
ÄssäControl DPV room sensor
The room temperature sensor measures the current room temperature, according to which it adjusts the temperature in the direction of the desired set temperature, keeping the room temperature nicely even.
