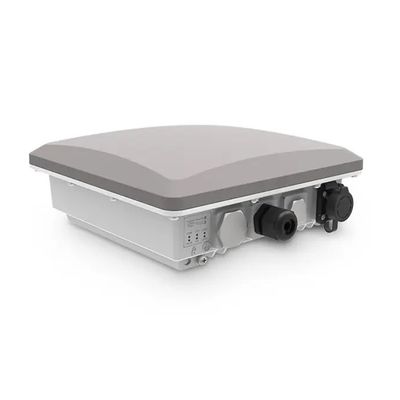

HAC - Model HAC-GWW1 - LoRaWAN -IP67- Grade Industry Outdoor Gateway
HAC-GWW1 is an ideal product for IoT commercial deployment. With its industrial-grade components, it achieves a high standard of reliability. Supports up to 16 LoRa channels, multi backhaul with Ethernet, Wi-Fi, and Cellular connectivity. Optionally there is a dedicated port for different power options, solar panels, and batteries. With its new enclosure design, it allows the LTE, Wi-Fi, and GPS antennas to be inside the enclosure. The gateway provides for a solid out-of-the-box experience for quick deployment. Additionally, since its software and UI sits on top of OpenWRT it is perfect for the development of custom applications (via the open SDK). Thus, HAC-GWW1 is suited for any use case scenario, be it rapid deployment or customization with regards to UI and functionality.
Hardware
- IP67/NEMA-6 industrial-grade enclosure with cable glands
- PoE (802.3af) + Surge Protection
- Dual LoRa Concentrators for up to 16 channels
- Backhaul: Wi-Fi, LTE and Ethernet
- GPS
- Supports DC 12V or Solar power supply with Electricity monitoring (Solar Kit optional)
- Internal antenna for Wi-Fi, GPS, and LTE, External antenna for LoRa
- Dying-Gasp(optional)
Software
- Built-in Network Server
- OpenVPN
- Software and UI sit on top of OpenWRT
- LoRaWAN 1.0.3
- LoRa Frame filtering (node whitelisting)
- MQTT v3.1 Bridging with TLS encryption
- Buffering of LoRa frames in Packet Forwarder mode in case of NS outage (no data loss)
- Full duplex (optional)
- Listen Before Talk (optional)
- Fine timestamping (optional)
8 Channel with and without LTE
- 1pc Gateway
- 1pc Ethernet Gable Gland
- 1pc POE Injector
- 1pc LoRa Antenna(need to buy extra)
- 1pc Mounting Brackets
- 1set Screws
16 Channel with and without LTE
- 1pc Gateway
- 1pc Ethernet Gable Gland
- 1pc POE Injector
- 2pc LoRa Antenna(need to buy extra)
- 1pc Mounting Brackets
- 1set Screws
- Matching gateways, handhelds, application platforms, testing software etc. for system solutions
- Open protocols, dynamic link libraries for convenient secondary development
- Pre-sales technical support, scheme design, installation guidance, after-sales service
- ODM/OEM customization for quick production and delivery
- 7*24 remote service for quick demo and pilot run
- Assistance with certification and type approval etc.
- 22 years industry experience, professional team, multiple patents
