AEL - Hairpin Heat Exchanger

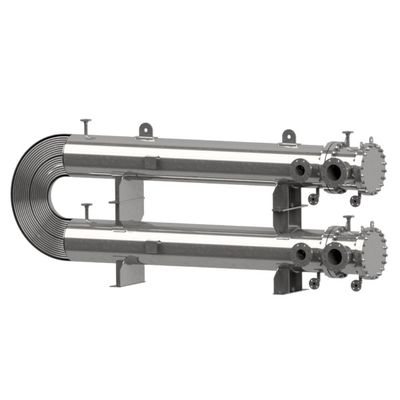

Shell and tube heat exchanger with U-tube bundle the legs of which are all sheathed: The shell tube system as a whole is bend back by 180° in case of this type, which shapes the heat exchanger as a hairpin. Such solutions are space-saving and are also suitable for media with large temperature differences due to their low thermal expansion. Hairpin heat exchanger are used, for example, for waste heat utilisation, exhaust gas treatment, evaporation and condensation.
