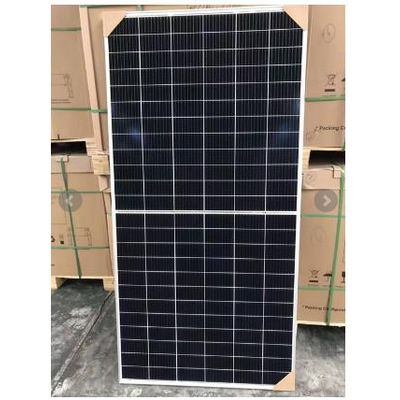

Meisongmao Risen - Model 400W-RSM144-6-400M -Half Cells Solar Panel

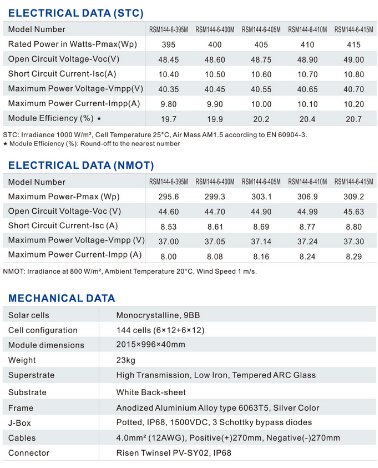

Mechanical Data  : Solar cells Monocrystalline, 9BB. Cell configuration 144 cells (6x12+6*12). Module dimensions 2015x996x40mm. Weight 23kg. Superstrata High Transmission, Low Iron, Tempered ARC Glass. Substrate White Back-sheet. Frame Anodized Aluminium Alloy type 6063T5. Silver Color. J-Box Potted, IP68,1500VDC, 3 Schottky bypass diodes. Cables 4.0mma (12AWG), Positive(+)270mm, Negative(-)270mm. Connector Risen Twinsel PV-SY02. IP68.
