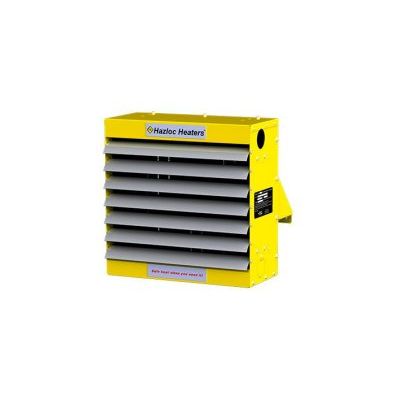

Hazloc Heaters - Model SRH2 Series -Steam Rig Heater
The SRH2 series of heat-exchanger unit heaters is designed for steam applications on drilling rigs where boiler neglect can lead to freeze-up conditions. During an accidental freeze-up the SafeDeform™ core headers are designed to accommodate ice expansion. The SRH2 Series is designed for pressures up to 150 psig (1034 kPa) in single-pass configurations only. Added benefits include our 18-month heater warranty and our reversible core connection feature that allows you to reverse the configuration of the inlet and outlet connection locations, by rotating the core, to suit your installation. SRH2 heaters meet ASME requirements with a National CRN.
All Hazloc Heaters™ SRH2 models are designed to ASME requirements for steam applications. The six sizes of SRH2 heaters include our SafeDeform™ top and bottom core headers which are designed to deform to the increased volume, due to ice expansion, during freeze-up conditions. This feature allows SRH2 heaters to be frozen several times without critical damage which keeps your safety in mind. With our SafeDeform™ feature, multi-pass core configurations are not available.
- Approval : Alberta CRN: 0H14931.2 - steam or fluids {not for use with lethal fluids as defined byASME, Section VIII, Div. 1. UW-2).
- Maximum pressure rating : 150psig (1034 kPa).
- Maximum design temperature : 550 °F (288°C).
- Cabinet material : 14-gauge (0.075 in.) (1.9 mm) steel. Yellow epoxy/polyester powder coated with five-stage pretreatment. including iron phosphate.
- Louver blades : Anodized extruded aluminum.
- Fan : Spark-proof three-blade aluminum (except SRH2-30 which is two blade).
- Fan guard : Split design with close wire spacing. A 3/8 in. (9.5 mm) diameter probe will not enter.
- Motor type : Thermally protected CSAor UL Listed 1725 RPM permanently lubricated ball bearing type with 56 frame. See page 3 for ordering requirements.
- Mounting holes : 5/8 in. -11 UNC - 4 holes at top of heater (2 holes, SRH1-12).
- Fluid connections : 2 in. NPT female inlet and outlet (configuration of fluid connection locations can be reversed by rotating the core).
- Header material : Minimum 12 gauge (0.105 in.) (2.7 mm) carbon steel conforming to ASME requirements.
- Finned tubes : 5/8 in. (15.9 mm) outside diameter [16-gauge, 0.065 in. (1.6 mm) wall thickness] carbon steel tubes with 1-1/2 in. (38.1 mm) outside diameter copper-free. L-foot. tension-wound aluminum fins @ 10 fins per in.
