TommaTech
TommaTech - Model TT675 132PMB12 -HC-MB G2G Solar Panel
FromTommaTech

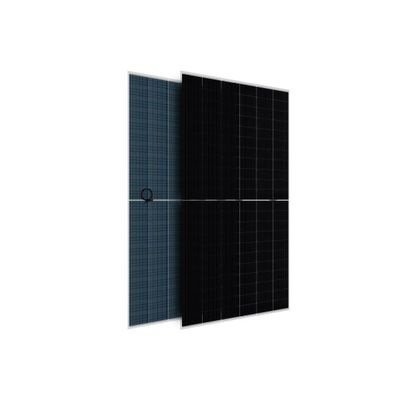

Bifacial solar modules offer many advantages over traditional solar panels. Power can be produced from both sides of a bifacial module, increasing total energy generation. Depending on the installation angle as well as ground, the solar panels can generate up to 30% additional energy.
Most popular related searches
solar panel
bifacial solar module
junction box
bifacial solar
solar module
solar power
bifacial solar panel
solar power producer
solar power production
solar panel module
- High Conversion Efficiency: High panel efficiency to guarantee high power output
- Self-Cleaning And Anti-Reflection Glass: Coating glass for self-cleaning reduces surface dust
- Outstanding Low Irradiation Glass: Outstanding panel performance even in weak light conditions
- Excellent Durability: Wind load up to 2400 Pa, Snow load up to 5400 Pa
- 0~+5Wp Positive Power Tolerance
- Easy Installation
- 15 Years Product Warranty
- 30 Years Performance Warranty
- Model Type : TT675 132PMB12
- Maximum Power (Pmax) : 675WP
- Module Efficiency : 21,57
- Maximum Power Voltage (Vmp) : 38.3
- Maximum Power Current (Imp) : 17,5
- Open Circuit Voltage (Voc) : 46
- Short Circuit Current (Isc) : 18,51
- Power Tolerance : 0 ~+5W
- Maximum System Voltage : 1500V DC
- Operating Temperature Range : -40 ~ +85 ° C
- Security Class : C
- Max. Series Fuse Rating : 30A
- Weight : 39.5
- Cell Size (mm) : 210x105
- Number of Cells (pcs) : 132 (6x22)
- Panel Dimensions (mm) : 2384x1303x35
- Max. Wind / Snow Load (Pa) : 2400/5400
- Junction Box Protection Class : IP68
- Temperature Coefficient (Isc) : 0.040%/° C
- Temperature Coefficient (Voc) : -0.260%/° C
- Temperature Coefficient (Pmax) : -0.340%/° C
- Junction Box Cable Length(mm) : 350-1600
