GEFA - Model Arctic -Heat Burner System
The Arctic Heat burner system improves fuel economy and reduces NOx in the exhaust. Arctic Heat can help bring economical and environmental benefits to your heating industry. Our customers often highlight the fact that they’ve experienced decreased fuel cost, less unburnt fuel and less NOx in the exhaust since they installed our burners. Arctic Heat is being used within industrial furnaces, PS converters and smelters all over the world – something we are very proud of.
Inside the converter, the matte is converted into metallic copper in two stages. The slag blowing stage and the copper blowing stage. The PS Converter has two belts of tuyeres coming along the axis on either sides of the horizontal, cylindrical converter. The procedure within the converter is rather simple.
During each stage, air or oxygen-enriched air, is injected through the tuyeres into the melt. Depending on the starting amount of copper in the matte, the procedure is repeated. The process doesn’t need additional heat since the reactions are exothermic. But the vessel needs heaters to maintain temperature when the batch is being changed.

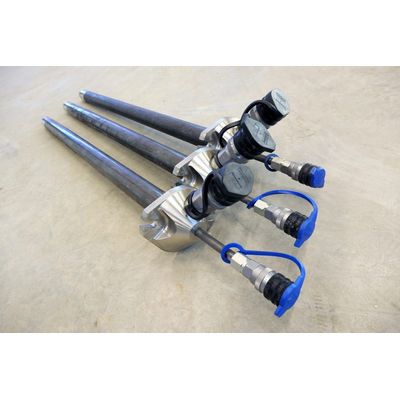

Our customers often highlight the fact that the Arctic Heat burner lance can be inserted and installed through the tuyeres of their PS converters.
Easy installation means shorter downtimes and more efficient processes. Also, our burners are more efficient and leaves less residues. That means lower costs and emissions.
Arctic Heat is a perfect burner lance to use in PS Converters.
Industrial furnaces
Our burners are optimized for use within different types of industrial furnaces. Adjustable flame size and efficient combustion even on low effect, our burners revolutionize the heating process within industrial furnaces.
Our unique high pressure system optimizes the fuel consumption, reduce costs and NOx in the exhaust – making it more efficient than a traditional burner.
Refractory Dry-outs
When The low amounts of unburnt fuel in the exhaust increases brick lifespan. One customer reduced unburnt fuel from 1000ppm to 50-80ppm.
We have also delivered several mobile heaters for used for dry out procedures in refractory linings.
Rotary Kilns
The Arctic Heat burner functions perfect within rotary kilns. Our customers testify that our burner technology improves energy recovery and results in lower emissions and better cost efficiency. We also achieve a very long flame to distribute the heat effectively.
Our customers use Arctic Heat for a wide variety of applications within a rotary kiln, as production burner, tempered pre-heat (TPH), Down draft drying (DDD), Pre-heat (PH) and for firing zone in travelling grates.
- Capacity from 0.2 to 70MW.
- Size from ∅26-70mm and 0.2m up to several meters in length.
- No moving parts other than the pump and valve.
- Fine grain control down to 10% of design maximum. e. g. a 3MW burner can deliver 0.3-3MW.
- Coupled to your plant control system via any common bus or controlled via our touch screen HMI.
- Lower NOx emissions
- Lower unburnt fuel emissions
