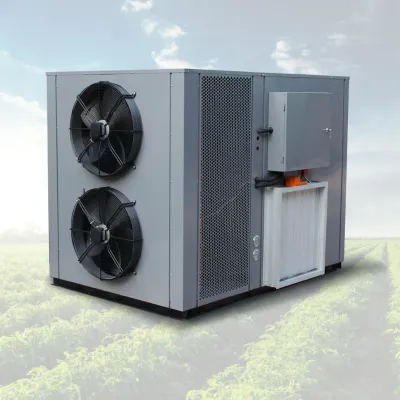

Airtek - Model CC1200 -Heat Pump Dryer Machine
The Model CC1200 heat pump dryer machine is engineered to efficiently dry a wide range of conventional materials including small-sized fish, seafood, fruits, vegetables, herbs, tea, leaves, agricultural products, jerky, and pet food. The dryer operates using advanced heat pump technology split into four main components: the fin evaporator, compressor, fin condenser, and expansion valve. This system facilitates a continuous evaporative cycle that absorbs heat from the external environment, compresses and releases it into the drying room, and ensures a regulated thermal environment reaching up to 100°C. This allows for superior drying performance while maintaining the nutritional quality and aesthetics of the materials. The CC1200 is particularly energy-efficient, mirroring the operation of air conditioners by capturing low-temperature energy and effectively transferring it indoors. It is an optimal choice for industrial drying applications ranging from 1000 kgs to 3000kgs capacities.
Model CC1200 heat pump dryer machine is suitable for drying conventional materials such as small size fish, seafood, fruits, vegetables, herbs, tea, leaves, agricultural products, jerky, pet food, etc.
- Dry Fast/Save Time
- Production Safety
- Energy Saving
- Eco-Friendly
- PLC Control System
What is the heat pump dryer machine?
The high-temperature heat pump drying unit is mainly composed of four parts: fin evaporator (outside), compressor, fin condenser (inside), and expansion valve. The refrigerant continuously evaporates (absorbs heat from the outdoor environment) → compression → condensation (heat release in the indoor drying room) → throttling → re-evaporation heat cycle process, so as to transfer the heat in the external low-temperature environment to the drying room, and the refrigerant is in the system The circulating flow rate in the compressor under the action of the medium. It completes the gas pressure increase and temperature rise process in the compressor (temperature up to 100°C). It enters the machine and releases high-temperature heat to heat the air in the drying room. At the same time, it is cooled and transformed into a liquid state. When it runs to the outside machine, the liquid quickly absorbs heat and evaporates, and then transforms into a gaseous state. At the same time, the temperature can drop to -20℃～-30℃. At this time, the air around the heat absorber will continuously transfer heat to the refrigerant. When the high-temperature heat pump drying unit is working, like ordinary air conditioners and heat pump units, it absorbs the energy in the low-temperature environment in the evaporator.
