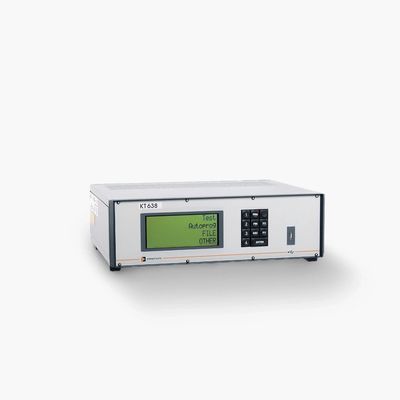

Adaptronic - Model KT 638 -Heavy-Duty High-Voltage Tester System
The heavy-duty KT 638 high-voltage tester uses 512 test points to test high voltage up to 1500 VDC and high current up to 2 ADC in stand-alone operation or integrated into a production line.
The versatile KT 638 reliably performs connection tests, short-circuit tests, high-voltage insulation tests, and component tests.The KT 638 wiring tester impresses with its intuitive operation via an LC display with 11 control buttons, which enable efficient operation without a PC. With multiplex technology for maximum test point density, single-point technology for optimal speed, the ability to automatically learn what constitutes a good sample, and comprehensive results logging, the tester increases productivity and ensures reliable quality assurance.The built-in NT Control LT software makes it easy to create, manage, and document test programs. From convenient processing to seamless quality assurance, the KT 638 delivers precise test results.
KT 638
Metric
- Test of other components: Diodes, LEDs, Zener diodes, varistors, surge arresters
- Interfaces: Network, 2 x USB, pin number probe, connection option for red-green warning lamp, foot switch, test result indicator
- Dimensions/height: 150 mm
- Width: 450 mm
- Dimensions/depth: 395 mm
- Weight: ca. 8 kg
- Voltage (AC), input max.: 230 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Voltage, input, connector: Protective contact plug (240 V, 16 A, 3-pole)
- Ambient temperature, operation min.: 10 °C
- Ambient temperature, operation max.: 40 °C
- Ambient temperature, storage min.: 10 °C
- Ambient temperature, storage max.: 60 °C
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Test voltage (DC) max.: 1500 W
- Test current (DC) max.: 2 A
- Test points, total max.: 512
- Continuity test via threshold identification min.: 0.001 Ω
- Continuity test via threshold identification max.: 10000000 kΩ
- Short-circuit test via threshold identification min.: 20 kΩ
- Short-circuit test via threshold identification max.: 5 MΩ
- Resistance measurement min.: 0.001 Ω
- Resistance measurement max.: 10000 MΩ
- Capacitance measurement min.: 10 nF
- Capacitance measurement max.: 0.02 F
- High voltage test (DC) max.: 1500 V
- DIO voltage max.: 24 V
Imperial
- Test of other components: Diodes, LEDs, Zener diodes, varistors, surge arresters
- Interfaces: Network, 2 x USB, pin number probe, connection option for red-green warning lamp, foot switch, test result indicator
- Weight: ca. 17.6 lb
- Voltage (AC), input max.: 230 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Voltage, input, connector: Protective contact plug (240 V, 16 A, 3-pole)
- Ambient temperature, operation min.: 50 °F
- Ambient temperature, operation max.: 104 °F
- Ambient temperature, storage min.: 50 °F
- Ambient temperature, storage max.: 140 °F
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Test voltage (DC) max.: 1500 W
- Test current (DC) max.: 2 A
- Test points, total max.: 512
- Continuity test via threshold identification min.: 0.001 Ω
- Continuity test via threshold identification max.: 10000000 kΩ
- Short-circuit test via threshold identification min.: 20 kΩ
- Short-circuit test via threshold identification max.: 5 MΩ
- Resistance measurement min.: 0.001 Ω
- Resistance measurement max.: 10000 MΩ
- Capacitance measurement min.: 10 nF
- Capacitance measurement max.: 0.02 F
- High voltage test (DC) max.: 1500 V
- DIO voltage max.: 24 V
