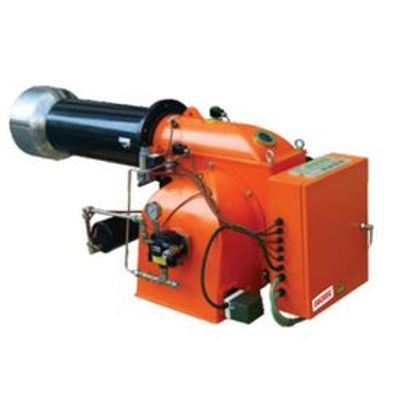

Eburn - Model M75/100/120/180/250/300/350/600HRF -Heavy Oil Burner
The M series burners, the Mechanical & Electrical Integration burners which extensive use the steam boilers, heating water boilers, heat conducting oil stove, direct-fired generator, lithium bromide air-conditioning plant and other industrial heating and parch stove equipments, are designed by advanced combustion technology in the world and consult the EN267 Standard and the national interr- elated standard.nd so on.
Most popular related searches
oil burner
steam boiler heat
boiler heat
burner
electric motor
industrial heat
industrial heating
steam boiler
combustion system
advanced combustion
- Min.Order Quantity: 100 Piece/Pieces
- Supply Ability: 10000 Piece/Pieces per Month
- Port: Shanghai
- Payment Terms: L/C,D/A,D/P,T/T
Technological performance and structural descriptions
- Heavy oil burner.
- Two-stage operation (high/low flame).
- High pressure mechanical atomisation of fuel using nozzle.
- Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
- Maintenance facilitated by the fact that the ato- misation unit can be removed without having to remove theburner from the boiler.
- Minimum and maximum air flow regulation for first and second stage by means of electric servomotor with pause closure of gate to prevent any heat dispersion to flue.
- With the fuel pre-heater which installed with the- rmometer and adjustable temperature controller
- One flange and one insulating seal for boiler fas- tening.
- Combustion air intake with air flow adjustment device.
- Adjustable blast-pipe with stainless steel nozzle and deflector disk in steel.
- Three-phase electric motor to run fan and pump.
- Flame presence check by photoresistance.
- Electrical plant protection rating Ip40.
