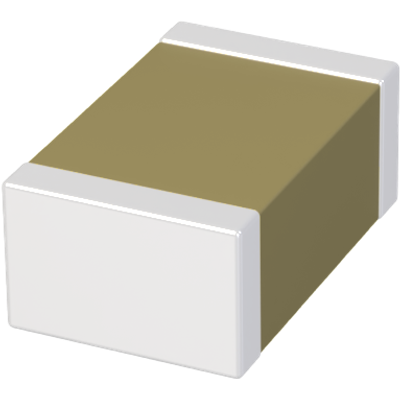

SRT - Model X7R, X7S, X6S and X5R -High Capacitance Capacitors
These high capacitance capacitors are designed for coupling and decoupling in digital circuits, high-frequency applications, and high-density power supplies. Manufactured with Basis Metal Electrode (BME) technology, these capacitors are offered in small sizes while achieving high capacitance values. They are RoHS and Halogen compliant, ensuring minimal environmental impact. These capacitors can handle a wide range of operating temperatures, with X7R and X7S types functioning between -55°C and +125°C, X6S from -55°C to +105°C, and X5R from -55°C to +85°C. Their temperature coefficients, dissipation factors, and insulation resistances are tested in accordance with CECC and AEC-Q200 standards. Suitable for surface mount applications, these capacitors are compatible with both wave and reflow soldering processes. Additionally, they offer high reliability without polarity issues and can be customized in terms of voltage, package size, and capacitance value for specific needs. Their dielectric strength test conforms to EIA-198-2-E standards, ensuring robust performance in demanding conditions.
- Digital circuit coupling/decoupling
- High frequency & high-density type power supplies
- Bypassing
- Ideal for smoothing circuits
- Suitable for DC-DC converters, personal computers and peripherals, telecommunications and general electronic equipment
- Realizes high capacitance in small sizes
- Basis Metal Electrode
- RoHS and HALOGEN Compliant
- Manufactured in Taiwan
- Surface mount suited for wave and reflow soldering
- High Reliability and no polarity
- AECQ-200 range can be proposed in High Reliability
- Excellent in high frequency characteristics
- Custom voltage, package size, capacitance value on request
- Tested in accordance to CECC 32100 and AEC-Q200
- CECC 30700 et NFC 83-132 compliant
Electrical Characteristics :
at + 25°C unless otherwise specified
Operating Temperature :
X7R : - 55°C, + 125°C
X7S : - 55°C, + 125°C
X6S : - 55°C, + 105°C
X5R : - 55°C, + 85°C
Temperature Coefficient :
X7R : ±15% with 0Vdc applied
X7S : ±22% with 0Vdc applied
X6S : ±22% with 0Vdc applied
X5R : - ±15% with 0Vdc applied
Dissipation Factor :
cf Table
Insulation Resistance (IR) :
25°C/Un 104 MOhm or 500 Ohm-Farad whichever is less
Except ° table 25°C/Un 104 MOhm or 100 Ohm-Farad whichever is less
Except ° table 50 Ohm-Farad
Dielectric Strength Test :
Performed per method 103 of EIA 198-2-E
2.5Un for 5s with 50mA max charging current
