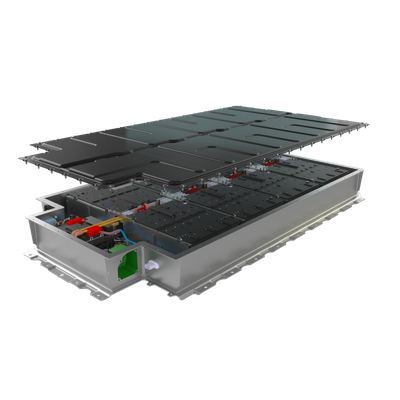

LION Smart - Model Power 53 -High-capacity, High-performance Battery Storage System
FromLION Smart GmbH
The LION Smart Storage Power 53 is a high-capacity, high-performance battery system designed for stationary and mobile storage applications, offering fast charging, certified safety, and flexible system integration—fully compatible with the Power 42 platform.
Most popular related searches
battery storage system
battery system
battery storage
battery system engineering
fast charging
power storage
battery performance
battery design
stationary storage
- High Energy Content: 52.8?kWh nominal / 47.4?kWh usable per unit, NMC chemistry.
- Peak Power Ready: Supports high peak power and fast charging for critical energy use cases.
- Backward Compatible: Shares interfaces and dimensions with the LION Smart Storage Power 42.
- Scalable Architecture: Up to 12 batteries per system via gateway, for total capacity of 634?kWh.
- Certified Safety: ISO 26262 ASIL C and IEC 61508 SIL 2 certified BMS, robust passive protection.
- Thermal Management: Optional 1?kW heater and direct refrigerant cooling (R1234yf, R134a, water-glycol).
- Easy Integration: Contact protection, standardized interfaces, and customizable software.
- Rugged Housing: IP67 / IP6K9K protection; dimensions: 1,662 × 964 × 174 mm; approx. 280?kg.
- Proven Standards Compliance: ECE R100, R10, UN 38.3, ISO 16750.
- Available Q1/2025: Sample units ready for integration and testing.
