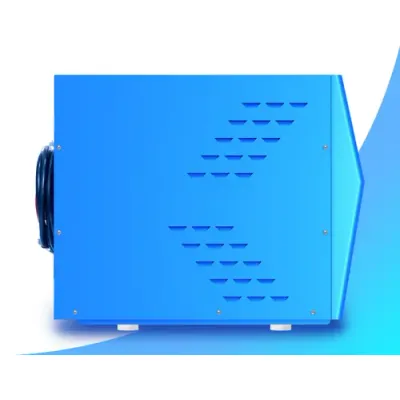

ASHAPOWER - Model ROVER 2524 - 24V -High-efficiency Solar Power Converter

ASHAPOWER SOLAR MPPT PCU - ROVER 2500-HV is a Premium quality high Power Solar energy extractor with low energy consumption for your Home / Office having a connected load of 2000 Watts. It can be loaded with Fans, LED lights, Iron box, Computer, normal Washing machine, Inverter fridge, low tonnage Inverter AC,TV, Laser printer, and a low HP Induction motor pump when used with 2300 Watts Solar PV Panels and 24V/200 Ah batteries. The Integration of a highly efficient MPPT Solar Charge Controller (2300Wp/165 Voc /50 A), 2000W pure DSP sine wave Inverter with 0.8 power factor, series connection capacity of 3 PV Panels of 50Voc/550 Watts, easy customer control over System functions, and high performance with low energy consumption makes it unique in its Class.

• Highest PV Panel Voc Capacity (up to 165 V) in 24V segment
• High Grade CRGO Laminated Pure Copper Transformer
• 0.8 Constant Output Power Factor (2500VA = 2000W Max. O/P load)
• Zero Grid Power Consumption on Idle Stage
• No Load DC Current < 0.7A +/- 0.3A
• User Configurable Grid Charging Current up to 20 A
• 70 Micron High Grade PCB
• Customer Control Over Grid Charging ON/OFF
• Best In Class External Surge/Lightning Protection
• Battery Grid Charging even at low grid Voltage
• Compatible to All Types of Batteries including LiFePO4 with BMS
• Over Load, Surge and Short Circuit Protection
• Unique ZMPT Based isolated Grid Sensing to reduce lightning hazards
• Forced Grid to Solar Mode Shifting Facility
• Constant Noise Free DSP Pure Sine Wave Output
• Soft Front Panel all Function Control Switches - No Rocker Switches behind the Device
• Large 4 Line Multifunctional LCD Front Panel display
• User selectable solar priority and grid priority charging modes
• Intelligent true multi stage smart solar and grid charging (Bulk, Absorption, Float)
• High over load and surge load handling capacity
• Unbeatable MPPT Tracking Efficiency up to 98.9%
• MCB Short Circuit Protection for Grid Power
• Blade Fuse Protection for Internal Components

SPECIAL FEATURES

• Over Charge Protection from grid and solar : YES
• Panel Reverse Polarity Protection : YES
• Battery Reverse Polarity Protection : OPTIONAL
• Standby grid Power Consumption : Zero at idle stage
• Overload Protection From PV Panel : YES

OUTPUT

• Maximum solar Charging Current : 50Amps (configurable)
• Maximum MPPT tracking efficiency : 98.9 %
• Nominal Battery Voltage : 24V DC
• No load battery Power Consumption : 0.7AMP + - 0.3
• Maximum grid battery charging current : 4 AMP TO 20 AMP (configurable)
• Humidity : 0 to 90% RH (No dew)
• Operating temperature : - 20 degree to 65 degree C
• Storage temperature : - 30 degree to 80 degree C
• Max. output power : 2000 W

PHYSICAL

• Display : 4 line LC Display
• Connectors : 6Way Input / Output Terminal block
• Net Weight (Kgs) / Gross Weight (Kgs) : 21.5 / 23.5
• Dimensions – L x W x H (cm) : 44 x 20 x 34

PV INPUT

• Max. Applicable PV Panel Load on MPPT : 2300 Wp
• Max. Applicable PV Panel VOC : 165 V
