Stercom Power Solutions GmbH
Stercom - Model ICI - High Power Charging Station

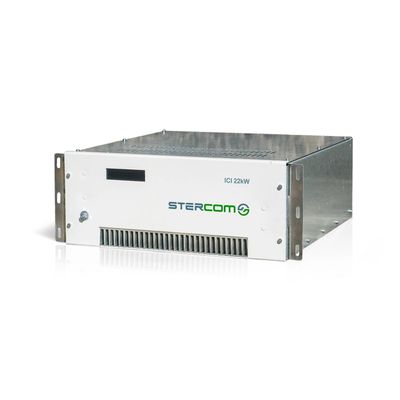

In wireless power transfer (WPT), electrical energy is transmitted inductively, means without contact, from a stationary magnet coil to a receiver coil for example in a vehicle. Depending on the transmission power energy storage can be charged quickly in electrically powered vehicles during a parking process. Such charging systems are used where environmental conditions do not allow contacting or classic plug-in system are too cumbersome. Thanks to the latest SiC switching technology and special coil design, Stercom`s 22kW Inductive Charge Inverter (ICI) achieves a transmission efficiency of up to 94% even with large air gaps up to 20cm. Stercom WPT complies with the standard DIN / IEC / TS 61980-3
Most popular related searches
power factor correction
electric power
electrical power
power factor
energy storage
fast charging
power storage
power transmission
inverter
UPS system
- ICI Charging Station for stationary (primary side) Inductive Charging according to DIN IEC 61980-1 or propriety (customized) solutions for High Power Charging
- Coil Arrangement allows for wide air gaps up to 200mm
- Wide range of AC Input 50Hz/60Hz with AFE Power Factor correction
- Very High efficiency up to 94%
- Variable transmission frequencies from 60 kHz to 100 kHz
- Integrated “Foreign Object Detection” (FOD) and “Living Object Detection” (LOD)
- Integrated WiFi communication to the vehicle
- Stationary (Primary) side inductive charging according DIN IEC 61980-1 for passenger and commercial vehicles
- Secondary ICI Vehicle Controller according to DIN IEC 61980-1 or proprietary design
- High Power Fast ICI charging up to 44kW
- Customized Systems for very High Power Charging (~200kW) or charging in special environments
