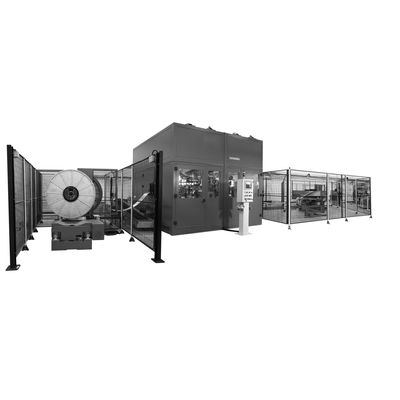

Sovema - Model PunchPlus - High-Speed Punched Grids Production Machine
Sovema PunchPlus provides high-speed punched grids production through a continuous lubricant-free strip flowing process. An exclusive plus of Sovema Punchplus is the oil-free operation: thanks to the extremely high punching speed, no lubricant is needed on the grids. Therefore, the machine ensures the unique advantage of obtaining a clean grid without installing cleaning devices downstream.
Visual System for Grid Quality Control
Sovema Punchplus can be equipped with a high-speed strobe photosystem, showing and highlighting areas of non-compliance in the Graphical User Interface (GUI).
The system compares the produced grid with a reference grid model and reports any difference between the actual product and the benchmark
- High Product Quality
- High Productivity
- Grid Design Flexibility
- Cost Saving
250 strokes/min
Production Rate
36 m/min, 500 plates/min for 144 mm grids
300 mm
Max. Inlet Strip Width
4.5 mm
Punching Stroke
10 msec
Cutting Cycle
No heat produced
