Ecoprogetti srl

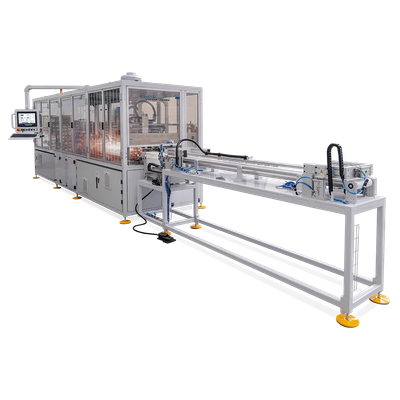

Ecoprogetti - Model ETS 6000 - High Speed Stringer for Solar Pv Panels
FromEcoprogetti srl
The ETS6000 is our fastest infrared stringer machine designed to solder TOPCon, Back contact, HJT, PERC solar cells into strings at a throughput of 6000 cells/hour for half cut cells. The stringer can work with cells’ sizes from 182 to 230 mm (9 to 24 BB/Wire) full and half-cut.
Most popular related searches
PERC solar cell
solar photovoltaic panel
stringer machine
solar cell
PERC solar
solar photovoltaic
photovoltaic panel
PERC cell
solar panel
solar stringer
- Breakage rate less than 0.2%, ensuring high product quality.
- Infrared soldering technology, minimizing thermal stress on cells.
- Peak throughput of 3000 cycles/hour for high production efficiency.
- Compatible with a range of cell types, including TOPCon, HJT, and BC.
- Cell size compatibility from 166 mm to 230 mm.
- Technical availability over 92%, maximizing operational time.
- Supports half-cut and triple-cut cells, enhancing module options.
- Vision system for precise alignment and broken cell detection.
- User-friendly touch-screen interface with multilingual support.
- Remote assistance capabilities, simplifying maintenance and support.
- EL/PL inspection for photoluminescence testing on strings
- Adaptability for back-contact cells
