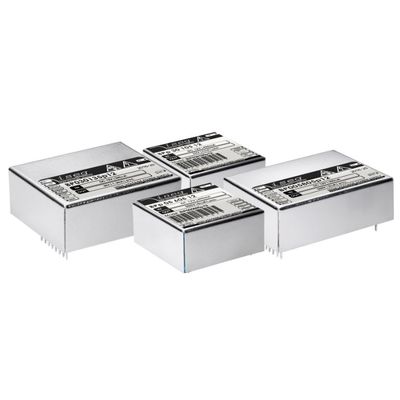

Iseg - Model BPS Series - High Voltage Print Module for PCB Mounting
The BPS series from iseg represents a line of robust and compact DC/DC converters designed for PCB mounting, offering high voltage outputs ranging between 300V to 6kV. These converters support adjustable output voltages via a potentiometer or an analog control voltage, providing flexible integration options. Employing a patented resonance converter technology, BPS ensures minimal electromagnetic interference and maintains low ripple and noise levels, making them ideal for precision applications in industrial and research environments. Their moulded metal box shielding enhances reliability by reducing susceptibility to external disturbances. The range spans several power outputs up to 4.0W, supporting various input voltages such as 5V and 12V, with ripple figures as low as 5mV, ensuring exceptional consistency and performance.
The BPS is a small DC/DC converter which can be mounted and soldered on PCBs. The output voltage is controllable with either a potentiometer or an analog control voltage. The patented resonance converter technology and moulded metal box shielding guarantee lowest electromagnetic interference and low ripple and noise.
- patented resonance converter technology
- controlled by analog set voltage
- monitor voltages
- wide supply range
- low ripple and noise, low EMI
- internal reference voltage
- RoHS compliant
- customized versions on request
