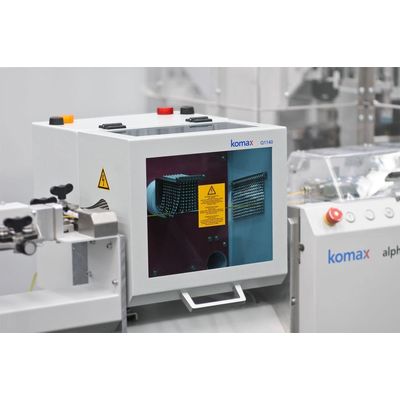

Komax - Model Q1140 -High Voltage Spark Tester for Fully Automatic Wire Processing Machines
The Q1140 high-voltage spark tester for fully automatic wire processing machines checks wire insulation for the smallest needle holes and microscopic cracks. The Q1140 spark tester is a fully integrated system for testing cable jackets and conductor insulation. The cable to be tested is fed through a high-voltage electrode. If the insulation is damaged, the voltage drops and the control unit detects the fault. The corresponding wire section is automatically cut off without production downtime. The insulation tester operates at a maximum speed of 40m/s and is suitable for wires with a diameter of up to 30mm. Reliable detection of even the smallest insulation faults and automatic sorting increase quality and prevent lost production time. The spark tester cannot be used with the ACD incision monitoring.
Q1140
Metric
- Air humidity max.: 95 %
- Dimensions/height: 385 mm
- Dimensions/length: 355 mm
- Dimensions/width: 400 mm
- Weight: 25 kg
- Temperature during transport/storage: -20 bis +50 °C
- Temperature operation: 5-50 °C
- Wire diameter max.: 30 mm
- Line speed max.: 40 m/s
- Electrode length, bead chain electrode: 40 mm
- Electrical connection: 85– 264 V AC/47– 63 Hz max. current consumption 1.4 A
- Fuse: Fuse in plug for mains connection 250 VAC/5x20 mm, T3.15A 2 pcs.
- Test voltage (DC) min.: 1 kV– 28 kV DC, negative; preset: 5 kV version; 10 kV version
- Accuracy: < +/- 4%
- Output current: 1 mA minimum at 28 kV, proportional to output voltage; maximum 10 mA short-circuit current
- Test voltage at sea level up to 2000m above sea level M. max.: 28 kV
- Test voltage at sea level 2001- 3000m above sea level M. max.: 24.5 kV
- Test voltage at sea level 3001 - 4000m above sea level M. max.: 21.7 kV
- Test voltage at sea level 4001 - 5000m above sea level M. max.: 18.9 kV
Imperial
- Air humidity max.: 95 %
- Dimensions/height: 15.16 in
- Dimensions/length: 14 in
- Dimensions/width: 15.75 in
- Weight: 55 lb
- Temperature during transport/storage: - 4 bis 122 °F
- Temperature operation: 41-122 °C
- Wire diameter max.: 11.8 in
- Line speed max.: 131.2 ft/s
- Electrode length, bead chain electrode: 15.7 in
- Electrical connection: 85– 264 V AC/47– 63 Hz max. current consumption 1.4 A
- Fuse: Fuse in plug for mains connection 250 VAC/5x20 mm, T3.15A 2 pcs.
- Test voltage (DC) min.: 1 kV– 28 kV DC, negative; preset: 5 kV version; 10 kV version
- Accuracy: < +/- 4%
- Output current: 1 mA minimum at 28 kV, proportional to output voltage; maximum 10 mA short-circuit current
- Test voltage at sea level up to 2000m above sea level M. max.: 28 kV
- Test voltage at sea level 2001- 3000m above sea level M. max.: 24.5 kV
- Test voltage at sea level 3001 - 4000m above sea level M. max.: 21.7 kV
- Test voltage at sea level 4001 - 5000m above sea level M. max.: 18.9 kV
