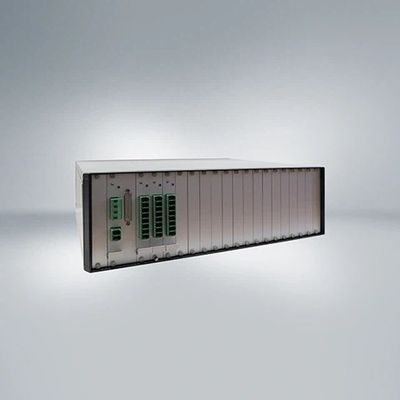

Komax - Model CT45-HV 3kV - High Voltage Test Point Rack Device

SHARE

Developed for high voltage testing, the CT45-HV 3kV Rack device is a relay matrix rack with an upgraded CT45 controller designed to incorporate all CS WIN nx® functionalities. The combination of the CT45-HV 3kV Rack device with the CS WIN nx® testing software enables the integration of both low and high voltage technologies in a single application, providing full flexibility. The CT45-HV 3kV Rack device has a management capacity of up to 144 test points and can be combined with the LV test point card bus, making it more versatile. The system is capable of performing a wide range of measurements, including dielectric withstand, insulation test, 4-wire measurement, short-circuit, connection, component, leak, fiber optic attenuation, color detection, and B+ detection. In summary, the combination of the CT45-HV 3kV Rack device and CS WIN nx® testing software provides full flexibility for integrating both low and high voltage technologies in a single application.

Most popular related searches

high voltage test

high voltage testing

high voltage testing system

condenser protection

voltage testing system

dielectric testing

CT45-HV 3kV Rack

Metric

Dimensions/height: 134 mm
Width: 427 mm
Dimensions/depth: 376 mm
Weight: 2.9 kg
Total power max.: 250 W
Ambient temperature, operation min.: 10 °C
Ambient temperature, operation max.: 40 °C
Ambient temperature, storage min.: -10 °C
Ambient temperature, storage max.: 60 °C
Air humidity non-condensing min.: 40 %
Air humidity non-condensing max.: 75 %
Protection class: IP 20
Operating height (feet above sea level) max.: 2000 m
Test voltage (AC) min.: 22.8 V
Test voltage (AC) max.: 25.2 V
Test voltage (DC) min.: 20 mV
Test voltage (DC) max.: 15 V
Test current (DC) max.: 1 A
Test points, internal max.: 8
Test points, total max.: 136
Continuity test via threshold identification min.: 20 Ω
Continuity test via threshold identification max.: 10 kΩ
Tolerance continuity test, +/- max.: 2 %
Short-circuit test via threshold identification min.: 10 kΩ
Short-circuit test via threshold identification max.: 1 MΩ
Accuracy short-circuit test, +/- max.: 5 %
Switch test min.: 20 Ω
Switch test max.: 10 kΩ
Tolerance switch test, +/-: 2 %
Resistance measurement min.: 5 Ω
Resistance measurement max.: 1 MΩ
Tolerance resistance measurement, +/- max.: 1 %
Capacitance measurement min.: 10 nF
Capacitance measurement max.: 100 nF
Tolerance capacitance measurement, +/- max.: 5 %
Diode test max.: 11 V
Leak test, depending on start pressure and duration: - Standard: Overpressure / Negative pressure: ja
Leak test, depending on start pressure and duration: -Qualified test: overpressure / negative pressure: ja
Fiber optic, attenuation, depending on length: ja
Color recognition: ja
B+ recognition: ja
High voltage test (DC) max.: 4000 V
High voltage test 2 max.: 3000 V
DIO voltage min.: 12 V
DIO voltage max.: 24 V
Digital outputs: 8
Output current (each DO) min.: 0.35 A
Output current (each DO) max.: 0.5 A
Digital inputs: 8
Test software: CS WIN nx ®: ja
CT Test software, optional TAS: nein

Imperial

Dimensions/height: 5.27 in
Width: 16.81 in
Dimensions/depth: 14.8 in
Weight: 6.39 lb
Total power max.: 250 W
Ambient temperature, operation min.: +50 °F
Ambient temperature, operation max.: +104 °F
Ambient temperature, storage min.: +14 °F
Ambient temperature, storage max.: +140 °F
Air humidity non-condensing min.: 40 %
Air humidity non-condensing max.: 75 %
Protection class: IP 20
Operating height (feet above sea level) max.: 6561 ft
Test voltage (AC) min.: 22.8 V
Test voltage (AC) max.: 25.2 V
Test voltage (DC) min.: 20 mV
Test voltage (DC) max.: 15 V
Test current (DC) max.: 1 A
Test points, internal max.: 8
Test points, total max.: 136
Continuity test via threshold identification min.: 20 Ω
Continuity test via threshold identification max.: 10 kΩ
Tolerance continuity test, +/- max.: 2 %
Short-circuit test via threshold identification min.: 10 kΩ
Short-circuit test via threshold identification max.: 1 MΩ
Accuracy short-circuit test, +/- max.: 5 %
Switch test min.: 20 Ω
Switch test max.: 10 kΩ
Tolerance switch test, +/-: 2 %
Resistance measurement min.: 5 Ω
Resistance measurement max.: 1 MΩ
Tolerance resistance measurement, +/- max.: 1 %
Capacitance measurement min.: 10 nF
Capacitance measurement max.: 100 nF
Tolerance capacitance measurement, +/- max.: 5 %
Diode test max.: 11 V
Leak test, depending on start pressure and duration: - Standard: Overpressure / Negative pressure: ja
Leak test, depending on start pressure and duration: -Qualified test: overpressure / negative pressure: ja
Fiber optic, attenuation, depending on length: ja
Color recognition: ja
B+ recognition: ja
High voltage test (DC) max.: 4000 V
High voltage test 2 max.: 3000 V
DIO voltage min.: 12 V
DIO voltage max.: 24 V
Digital outputs: 8
Output current (each DO) min.: 0.35 A
Output current (each DO) max.: 0.5 A
Digital inputs: 8
Test software: CS WIN nx ®: ja
CT Test software, optional TAS: nein
