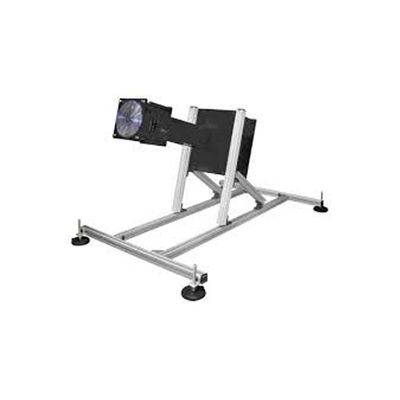

Sciencetech - Model FSSP-HC-A (191-9051) - Highly Collimated Flash Solar Simulator - 1.8 x 1.5m - Class AAA
Sciencetech’s FSSP-HC-A highly collimated flash solar simulator is capable of illuminating targets up to 1.8 × 1.5m (or 1.5m diameter) with highly collimated light (up to 0.5° half angle). This allows testing of concentrated photovoltaics (CPV) or other applications requiring extremely high collimation. Within the illuminated area, the central 1 × 1m or larger meets Class A uniformity requirements. Please speak with your Sciencetech technical support staff for Class A uniformity matching over the entire illumination area. The default spectral match is to ASTM AM1.5D.
This product includes a flash system, power supply, collimating mirror, and lamp. Air mass filters are available separately (AM1.5D and AM1.5G, with additional filters available upon request). Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options. Please inquire with Sciencetech technical support staff about our automation and assembly line manufacturing partners.
- Spectral Match: Class A
- Spatial Non-Uniformity: Class A (Central 1m × 1m)
- Temporal Instability: Class A
- Target Size: 1.8m × 1.5m (1 Sun)
- Working Distance: 5m
- Pulse Length: 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity
- Collimation: 0.5° half angle
- Name : (FSSP-HC-A) Highly Collimated Flash Solar Simulator - 1.8 x 1.5m - Class AAA
- SKU : 191-9051
- Target Size : 1.8x1.5 m
- Typical Power Output : 1 Sun
- Uniformity Classification : Class A
- Power Requirements : 110-115V/60 Hz or 220-240V/ 50Hz
- Collimation Angle : 0.5 degree half angle
- Lamp Power : 4800 J in 2 ms
- Working Distance : more than 5 m
- Spectral Match Classification : Class A
- Temporal Instability Classification : Class A
- Classification : Triple A (AAA)
- Continuous or Flash : Flash
