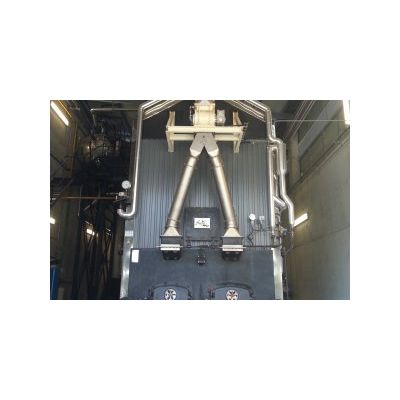

Flucal - Horizontal Water / Fire Tube Boilers
Boilers characterized by water-tube furnace and a fire-tube pressure body. Water-tube furnaces can be coupled to existing fossil fuel boilers in order to burn biomass / waste.
Most popular related searches
fossil fuel boiler
fire tube boiler
waste combustion
ash content
steam boiler
biomass waste
biomass combustion
biomass boiler
furnace
boiler tube
Range power
750 kW at 12.000KW
Pressure range
0.5 to 25 bar
Main advantages
- Wide pressure range
- Extended power range
- Ideal for burning waste with low ash content.
It can be coupled to:
- Water cooled Mobile-grate Furnace
- Water cooled Vibrating-grate Furnace
- Water cooled Floping grate Furnace
- Fixed / Tilting grate Furnace
These devices are controlled by automation systems, variable speed and high quality instrumentation with proven robustness, with tuned control systems depending on the type of equipment / type of fuel.
All our pressure devices are equipped with redundant safety systems and may achieve SIL 2 classification or SIL3 according to IEC 61508.
