Qiruite - Model 270W 330W 450W 540W PVT - Hybrid Solar Panel

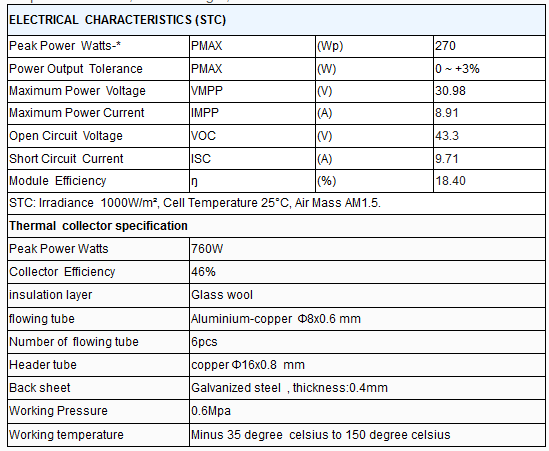

Number of cells: 60(6*10). Cell Type: polycrystalline 156*156mm. Dimension: 1640*992*40mm. Net weight: 25KG. Front glass: 3.2mm tempered low iron. Frame: Anodized aluminum. Junction box: IP67, with bypass diodes. Connector: MC4 compatible . Output cables: TUV, 900mm length, 4.0mm2.
Most popular related searches
solar panel
PVT solar panel
hybrid solar panel
PVT solar
bypass diode
junction box
solar collector
hybrid solar
solar project
solar hybrid
Simulation of System:
- 10KW PVT solar collectors project
- can offer 5000 liter hot water at 60°C per day.
Improve Photo-voltaic efficiency 15%
- Save installation cost and area
- Combine the photovoltaic and heating all in one
