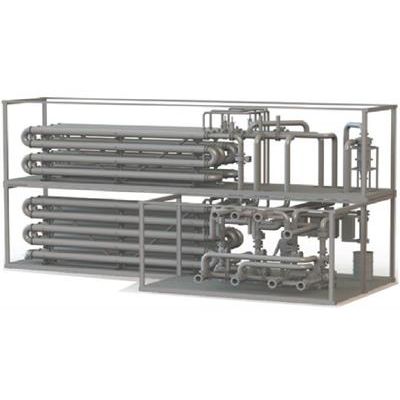

Hydraulic and Power Control Module

• Recovery of waste heat from the process
• Controls many temperatures (37°C, 50°C, and 70°C)
• Organizes the flow of structured organic fluids (SOFs) while being versatile regarding process directional and sequential choices
• Allows for simplified digesters maintenance without affecting operations
• Easy integration through preassembled design
• Rugged Variable-speed pumps for continuous input shredding

• Can independently manage up to three temperatures (37°C, 50°C, and 70°C) through selected reservoirs
• Pumping systems can easily shred SOFs without affecting pump durability and performance
• Their flexibility allows for organization of SOFs flow based on various directional and sequential choices
• Can process quantities of source segregated organic material from 10,000 to 80,000 cubic tons, based on client needs
• Module-integrated industrial hydrocyclone reduces system wear and need for maintenance
• All equipments needed for process are located outside the reservoirs, and bolted elbows greatly simplify maintenance
• Designed for continuous flow of SOFs to prevent formation of floating caps and crusts inside the reservoirs, thus optimizing the capture process
• Easy and safe system inspection through optimized design and properly located accesses

Exchanger Type:

• Power: based on client needs
• Used design: Tube-Tube
• Material: Type 316 (schedule #10) stainless steel
• Heat transport coolant: 50/50 glycol-water


Pump type:

• Shredding
• Variable speed motors
• Integrated water head

Structure and assembly:

• Pre-assembled modules on a variable length platform (based on client needs) or pre-assembled module inside an isolated sea freight container
