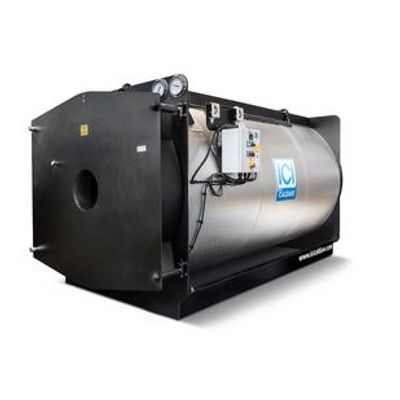

ICI-Caldaie - Model REX -Reverse Flame Fire Tube Heat Boilers
Reverse flame fire tube heat boilers. Cylindrical furnace completely closed on the rear side by a convex bottom supported by a fully submerged stub. It can be used with forced draft burners for the operation on liquid or gaseous fuels. Designed for the use in systems with water temperature between 60 and 100°C.
Most popular related searches
fire tube boiler
forced draft burner
draft burner
boiler controller
boiler control
boiler heat
boiler tube
boiler furnace
burner operation
furnace

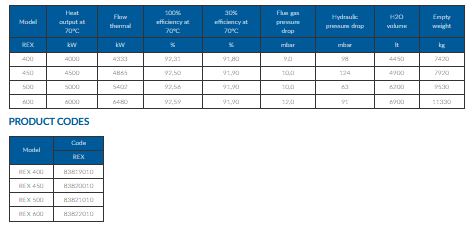

- Design pressure: 6 bar
- Heat output: 4000 ÷ 6000 kW
- Efficiency: > 92,0 %
Instruments for pressure control, including:
- Large dial 3 way test valve manometer
Instruments for temperature control, including:
- Thermometer with large dial, scale 0-120°C
- High temperature safety thermostat with manual reset (110°C)
- PT100 thermocouple
Boiler control panel IP55 1/N ~ 230V 50 Hz
- The safety thermostat with manual reset (110°C) is INAIL approved
The boilers destined to foreign countries will be provided with:
- High-pressure safety switch with manual reset
