Idry - Model iDRY PLUS -Air-Heated Vacuum Kilns

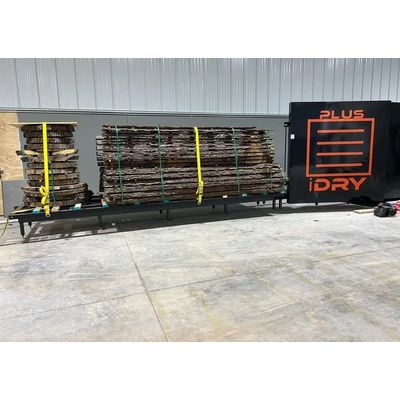

The iDRY PLUS dries the same way as the iDRY Standard Kiln but has an increased capacity of up to 4,000 board feet. This wood kiln dryer uses airflow to dry a stickered pile. It is similar to a DH kiln or conventional kiln, but under a vacuum pressure similar to that on top of Mt Everest, making this a fast and nice drying system.
ALL OUR KILNS MEET THE USDA HEAT TREAT STERILIZATION REQUIREMENTS
Capacity: up to 4000 board feet (More Info)
Stickered Lumber Pile:
16.5ft L x 60in W x 65in T
Power requirement: 208-230V 1PH 60A
Operating Cost: $0.04 to $0.06 per board foot
Drying Time: Approximately 1 week per inch of thickness (maple) - (More Info)
Heating: Electric (185F max temp)
Installation: Installed in above freezing and dry space, water connection, drain, 208-230V 60A power. For best performance ambient temperature should be 60-80F.
Loading: Forklift loaded (External Track and Trolley Included)
Water requirement: 1/2” connection, min 3/4 gpm, min 50psi
Controls: Touch Screen
Total Weight of equipment: 14,000lbs
Includes:
Remote access
Touchscreen
Track/Trolley
1 Year Limited Warranty
